Vacuum Pump

Turn ignition switch OFF.

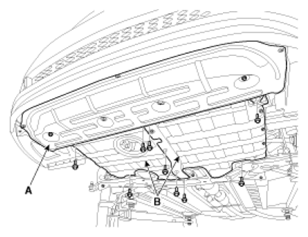

Remove the under covers (A, B).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 1: Under Covers
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the under cover (B), unfasten the mounting bracket bolts and then remove the under cover and mounting bracket assembly.

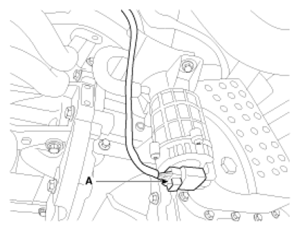

Disconnect the vacuum pump connector (A).

Fig 2: Vacuum Pump Connector
Courtesy of KIA MOTORS AMERICA, INC.

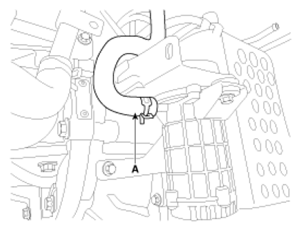

Disconnect the vacuum hose (A).

Fig 3: Vacuum Pump Hose
Courtesy of KIA MOTORS AMERICA, INC.

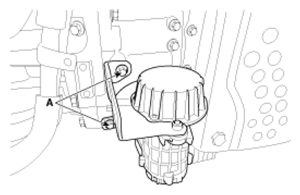

Loosen the vacuum pump bracket bolts (A), and then remove vacuum pump and bracket.
Tightening torque:

19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)

Fig 4: Vacuum Pump Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the 2 bolts (B), and then remove the bracket from vacuum pump.
