Circuit Diagram

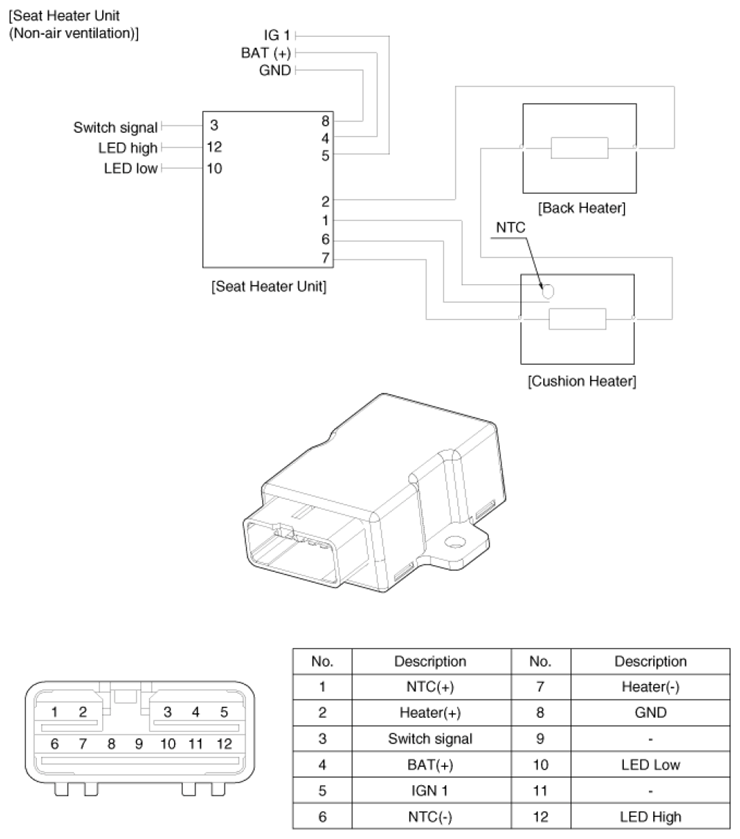

Fig 1: Seat Heater Circuit Diagram (Non-Air Ventilation)
G07380813Courtesy of KIA MOTORS AMERICA, INC.

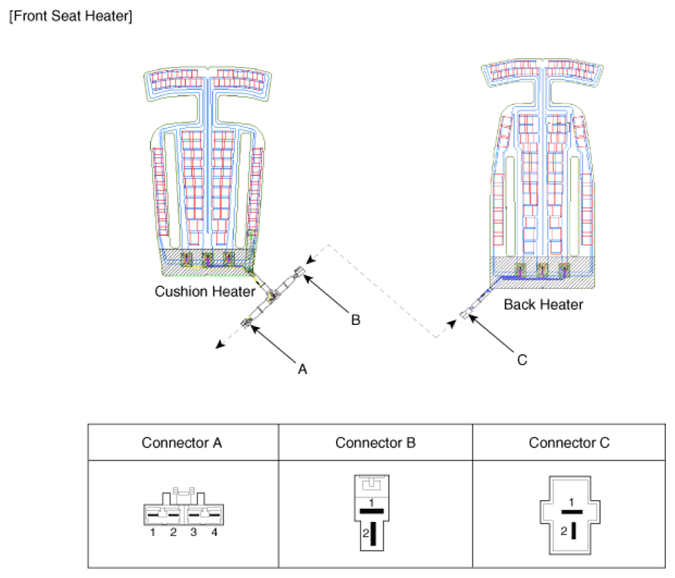

Fig 2: Front Seat Heater Connector Identification (Non-Air Ventilation)
G07380814Courtesy of KIA MOTORS AMERICA, INC.

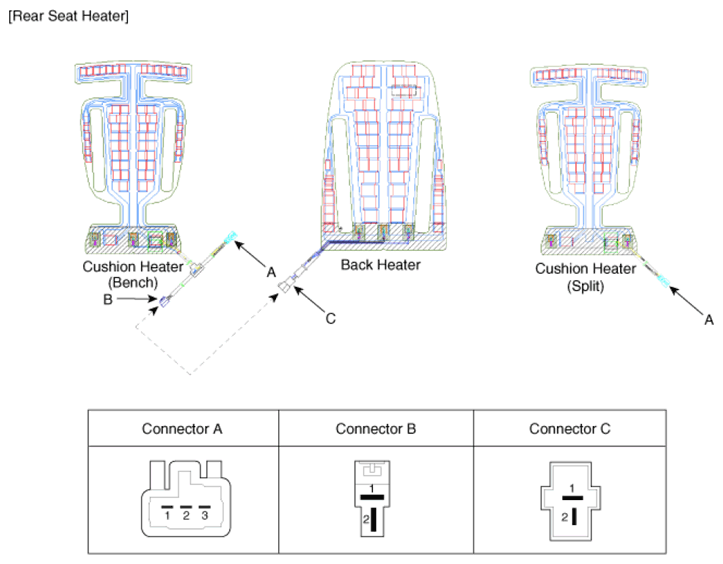

Fig 3: Rear Seat Heater Connector Identification (Non-Air Ventilation)
G07380815Courtesy of KIA MOTORS AMERICA, INC.
