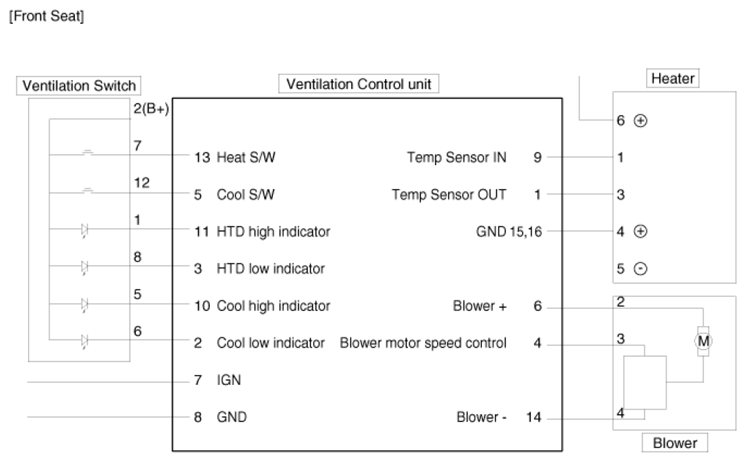

Home >> Kia >> 2012 >> Optima LX, Automatic Trans >> Repair and Diagnosis (Single Page) >> Body & Frame >> Seats >> Seat Electrical - Except HEV >> Air Ventilation Seat >> Schematic Diagrams >> Circuit Diagram
