Repair Procedures: Replacement

  1. Remove the cap (B) and remove the nuts, then remove the wiper arm (A).

    Tightening torque:

    22.6~26.5 N.m (2.3~2.7 kgf.m, 16.6~19.5 lb-ft)

    Fig 1: Wiper Arm & Cap
    G07380289Courtesy of KIA MOTORS AMERICA, INC.
  2. Disconnect the nozzle hose (B).
  3. Detach the clips, then remove the cowl top cover (A).

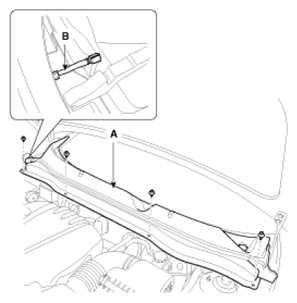

    Fig 2: Cowl Top Cover & Nozzle Hose
    G07380290Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
NOTE:
  • Replace any damaged clips.
