Body & Frame
>>
Door Locks
>>
Immobilizer System Diagnosis - Except HEV
>>
DTC P1691: Immobilizer-Antenna Coil Error
>>
General Information
>>
Diagnostic Circuit Diagram
Diagnostic Circuit Diagram

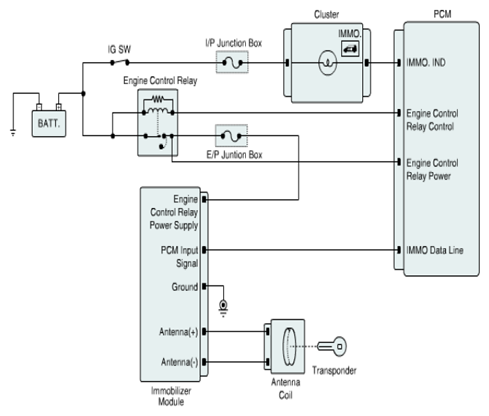

Fig 1: Immobilizer Module Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

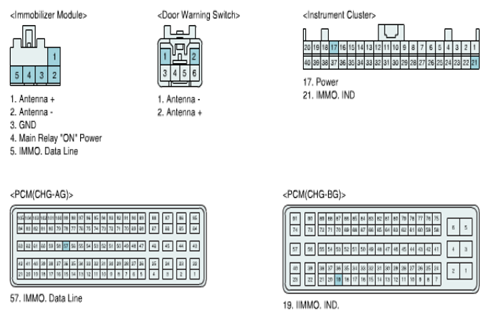

Fig 2: Immobilizer Module Connector End View
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
