Seat Heater Switch
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

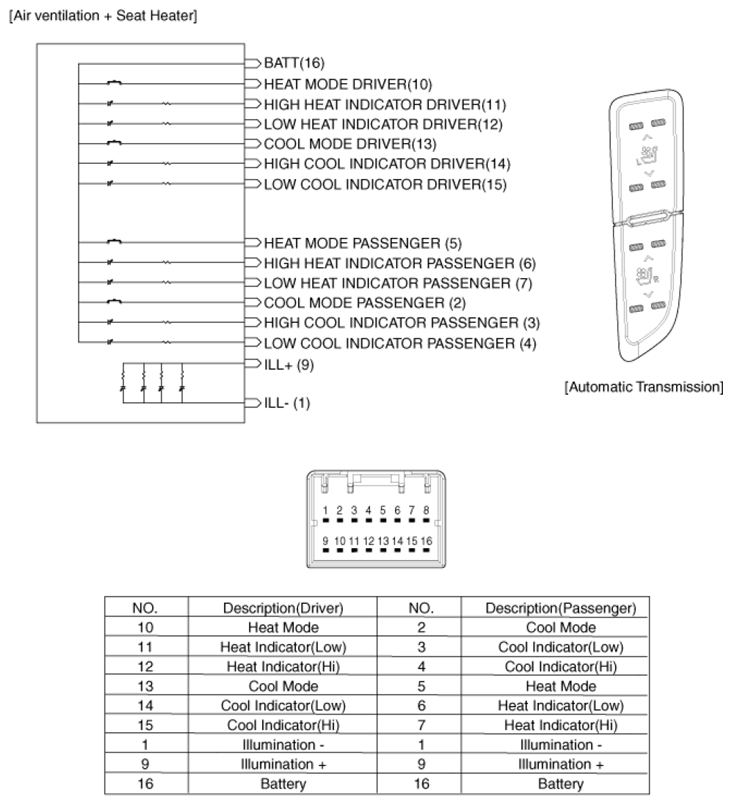

Fig 1: Seat Heater Switch Circuit Diagram (Air Ventilation & Seat Heater - Automatic Transmission)
Courtesy of KIA MOTORS AMERICA, INC.

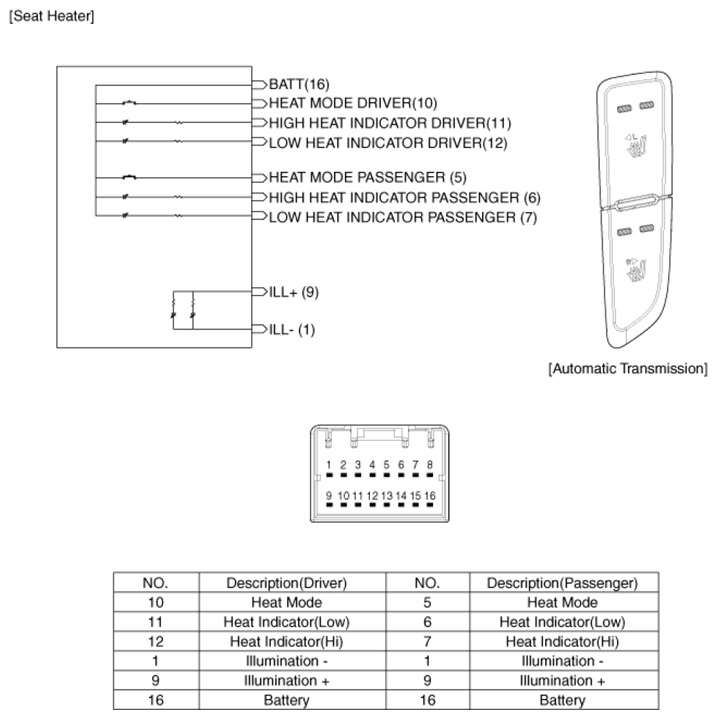

Fig 2: Seat Heater Switch Circuit Diagram (Seat Heater - Automatic Transmission)
Courtesy of KIA MOTORS AMERICA, INC.

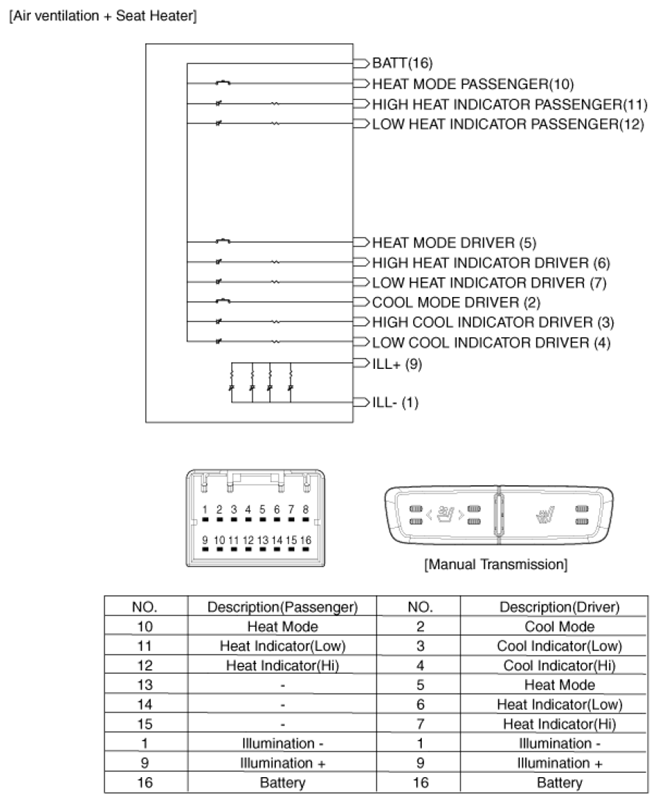

Fig 3: Seat Heater Switch Circuit Diagram (Air Ventilation & Seat Heater - Manual Transmission)
Courtesy of KIA MOTORS AMERICA, INC.

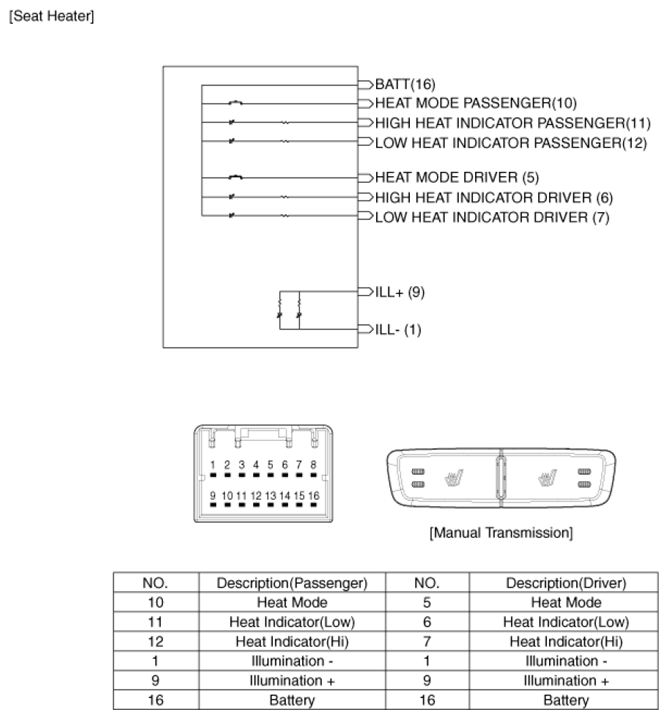

Fig 4: Seat Heater Switch Circuit Diagram (Seat Heater - Manual Transmission)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
