Head Lamp And Fog Lamp Aiming Point

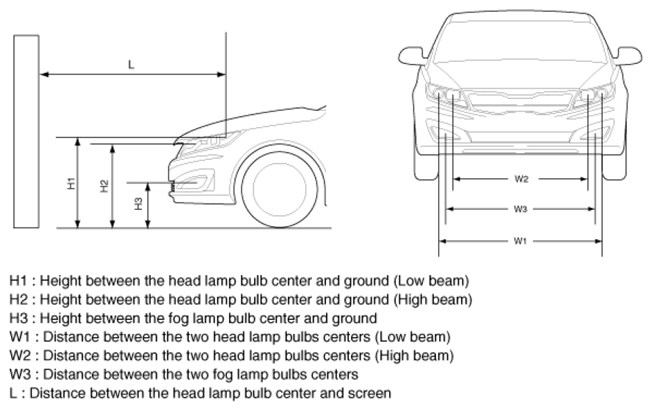

Fig 1: Identifying Head Lamp & Fog Lamp Aiming Points
G07381013Courtesy of KIA MOTORS AMERICA, INC.
VEHICLE CONDITION CHART

Unit : in (mm)
Vehicle condition H1 H2 H3 W1 W2 W3 L
Without driver 28.1 (715) 27.1 (690) 13.6 (347) 53.4 (1, 356) 44.3 (1, 126) 52.1 (1, 323) Refer to Fig 2
With driver 27.9 (710) 26.9 (685) 13.4 (342)
  1. Head Lamp (Low beam)
    1. Turn the low beam on without driver aboard.
    2. The cut-off line should be projected in the cut-off line shown in the picture.
    3. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

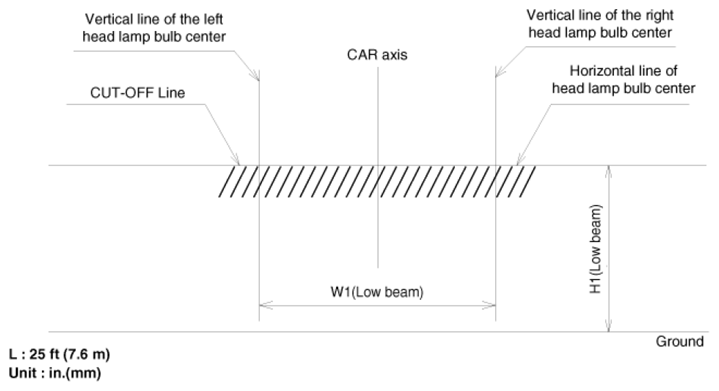

      Fig 2: Head Lamp Aiming Adjustment Positions
      G07381014Courtesy of KIA MOTORS AMERICA, INC.
  2. Turn the front fog lamp on without the driver aboard.

    The cut-off line should be projected in the allowable range (shaded region)

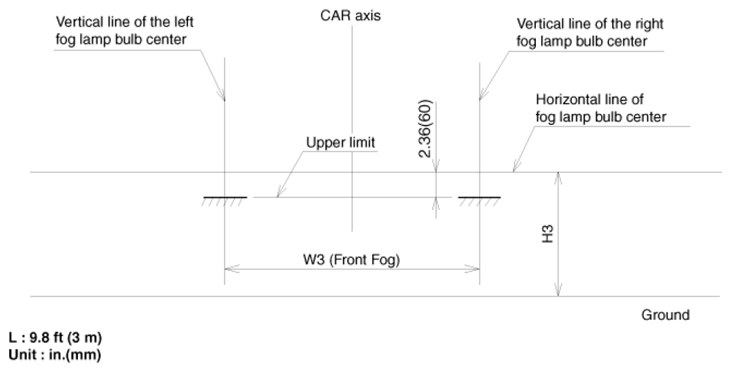

    Fig 3: Front Fog Lamp Aiming Adjustment Positions
    G07381015Courtesy of KIA MOTORS AMERICA, INC.
