Rear Right Turn Signal Lamp Circuit Inspection

Check open in harness
1. IG "OFF", disconnect battery (-) terminal.
2. Disconnect SJB connector.
3. Measure resistance between the Rear Right turn signal lamp terminal of SJB harness connector and ground of the Rear Right turn signal lamp.
  Specification : Approx. 1 Ω

  For 2012

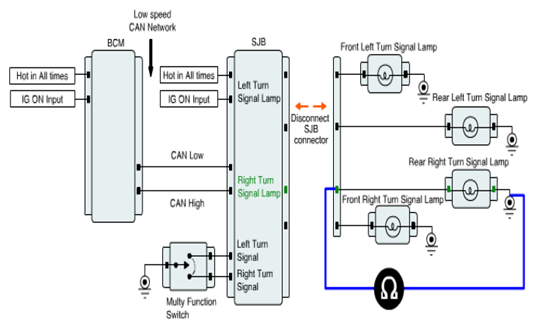

  Fig 1: Measuring Resistance Between Rear Right Turn Signal Lamp Terminal Of SJB Harness Connector & Ground Of Rear Right Turn Signal Lamp
  Courtesy of KIA MOTORS AMERICA, INC.

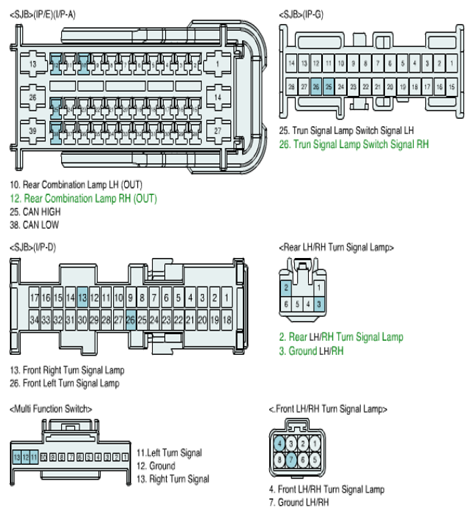

  Fig 2: Turn Switch Connector End View
  Courtesy of KIA MOTORS AMERICA, INC.

  For 2013 refer to ETM
4. Is the measured resistance within specification?
  YES
  - Substitute with a known - good SJB and check for proper operation.
    If the problem is corrected, replace the SJB and go to VERIFICATION OF VEHICLE REPAIR procedure.
  NO
  - Repair short to ground in circuit of Rear Right Turn Signal Lamp, and go to VERIFICATION OF VEHICLE REPAIR procedure.
