General Information: General Description

Once BCM receives head lamp low switch working signal, it sends the signal to SJB by CAN comminution. SJB turns on head lamp low.

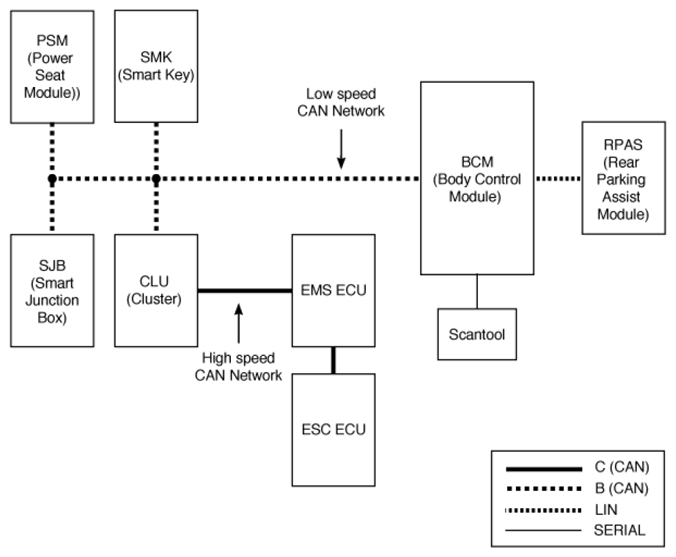

Fig 1: Controller Area Network Communication Diagram

Courtesy of KIA MOTORS AMERICA, INC.
