Component Location

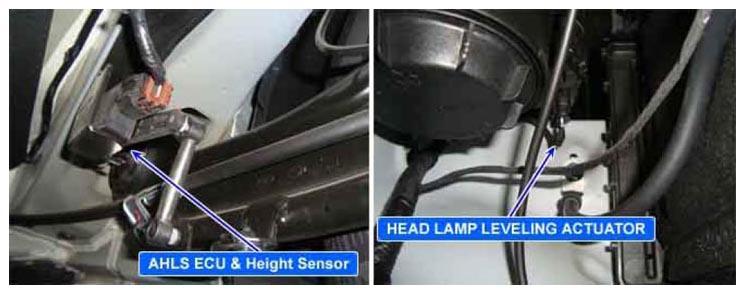

Fig 1: Identifying AHLS ECU & Height Sensor & Head Lamp Leveling Actuator
G07384920Courtesy of KIA MOTORS AMERICA, INC.
