Package Tray Trim Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly.
Refer to REAR SEAT .
After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

Fig 1: Rear Seat Belt Lower Anchor
Courtesy of KIA MOTORS AMERICA, INC.

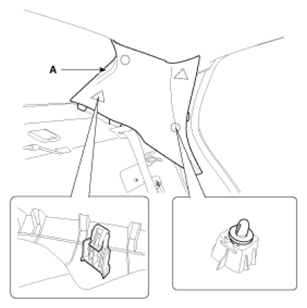

Using a screwdriver or remover, remove the rear pillar trim (A).

Fig 2: Rear Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 3: Rear Pillar Trim Connector
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the rear seat belt cover (B).

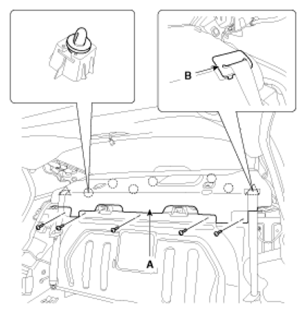

After loosening the mounting screws, then remove the package tray trim (A).

Fig 4: Package Tray Trim & Rear Seat Belt Cover
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.

NOTE:
