Component And Components Location: Components

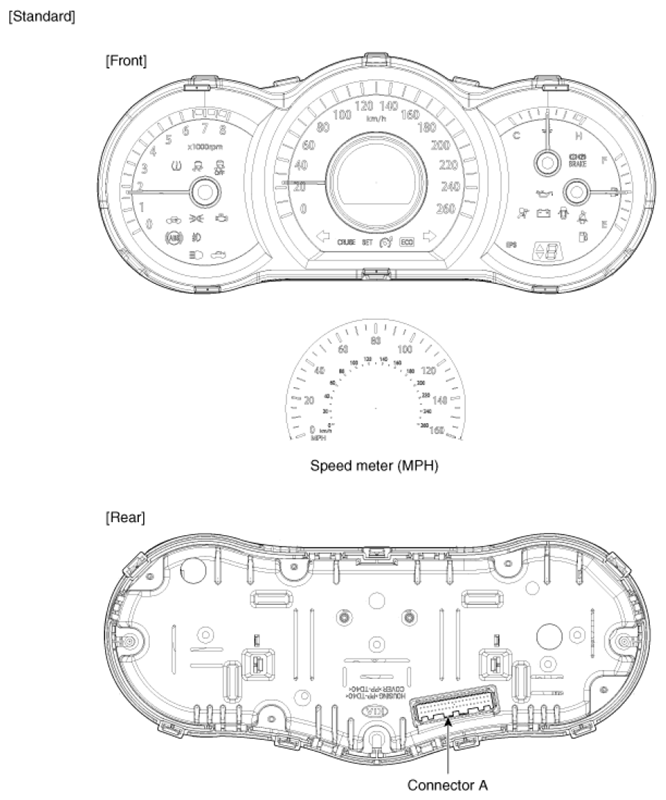

Fig 1: Instrument Cluster (Standard)

Courtesy of KIA MOTORS AMERICA, INC.

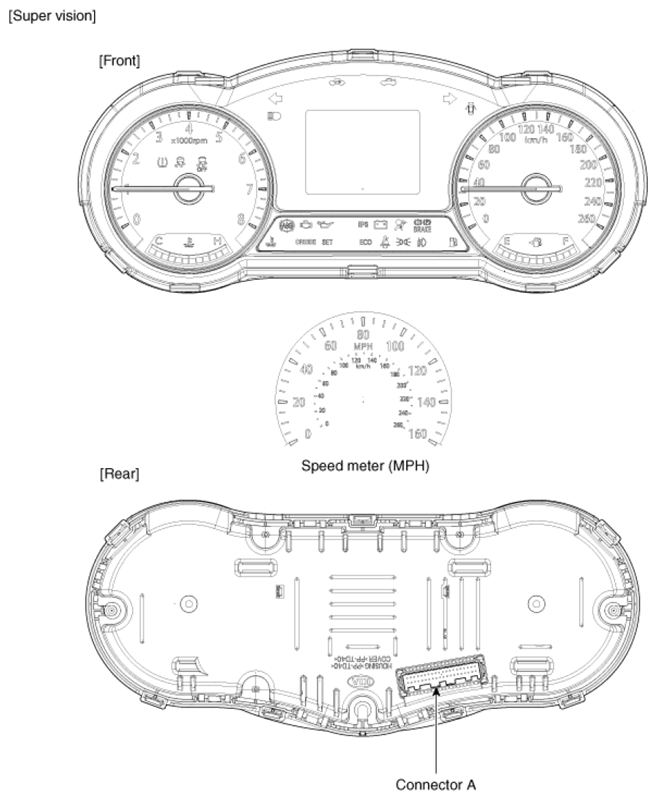

Fig 2: Instrument Cluster (Super Vision)

Courtesy of KIA MOTORS AMERICA, INC.

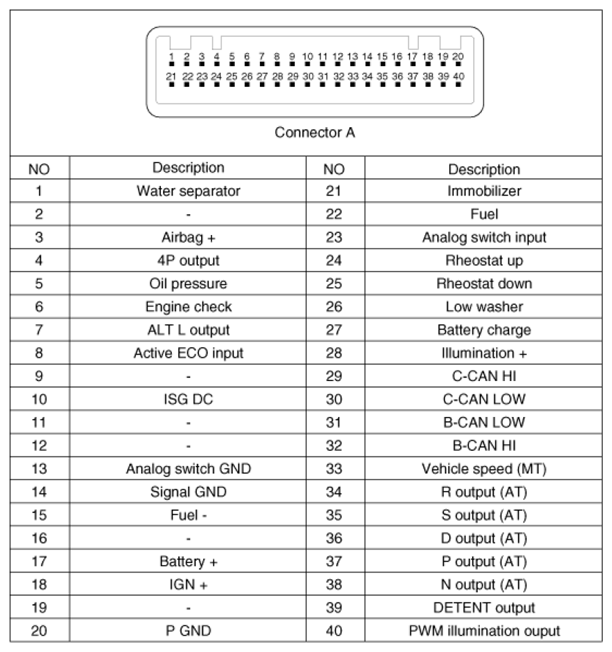

Fig 3: Instrument Cluster Connector Terminal Identification

Courtesy of KIA MOTORS AMERICA, INC.
