DTC B2521: Turn Signal RH Rear Open Circuit
>>
ETM
DTC B2521: Turn Signal RH Rear Open Circuit: ETM

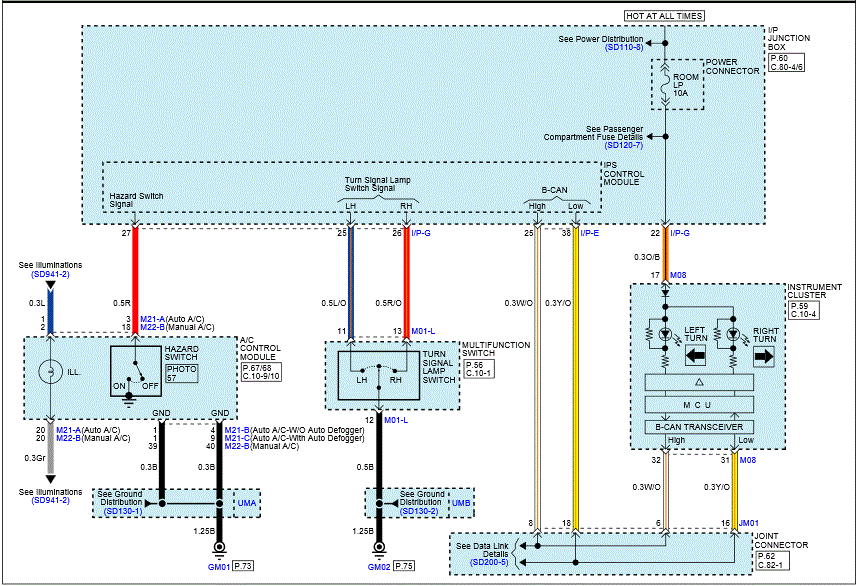

Fig 1: Turn & Hazard Lamps (1 of 2)
Courtesy of KIA MOTORS AMERICA, INC.

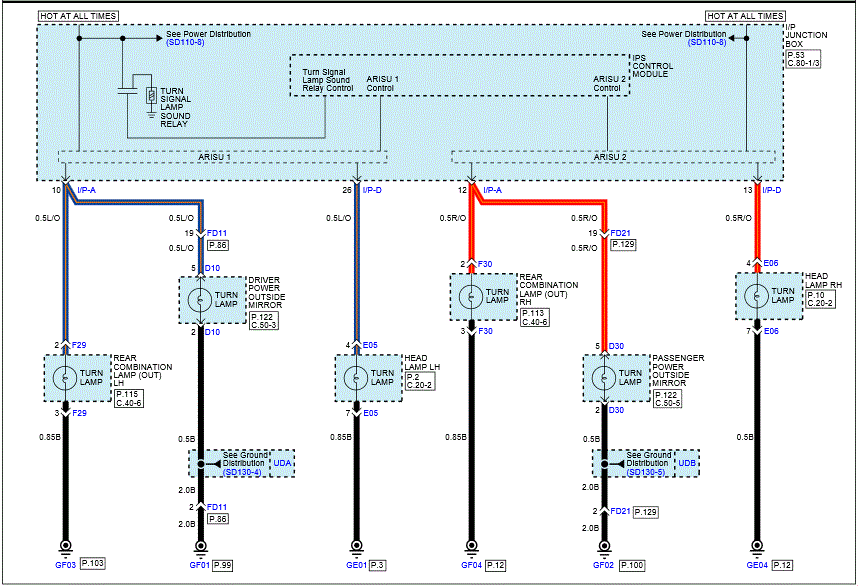

Fig 2: Turn & Hazard Lamps (2 of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
