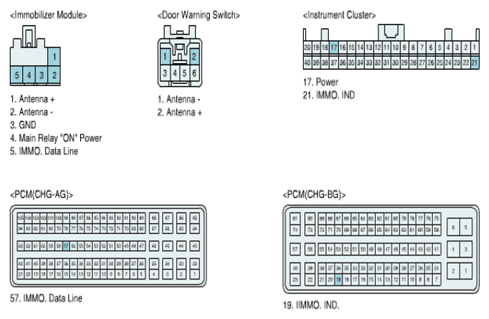

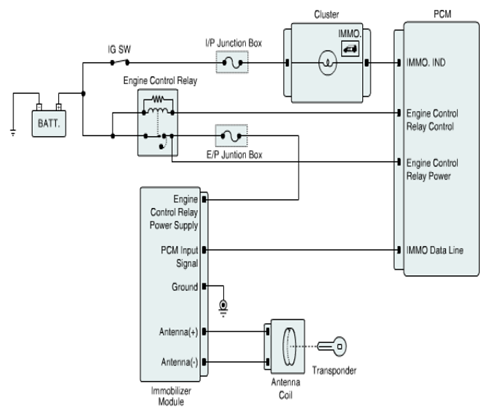

Home >> Kia >> 2012 >> Optima LX, Automatic Trans >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Anti-Theft Systems >> Immobilizer System Diagnosis - Except HEV >> DTC P1610: Non-Immobilizer-EMS Connected To An Immobilizer >> General Information >> Diagnostic Circuit Diagram
