Seat Temperature Switch
>>
Diagrams
>>
Connector Views
>>
Front Seat Warmer & CCS Switch (M/T)
Front Seat Warmer & CCS Switch (M/T)

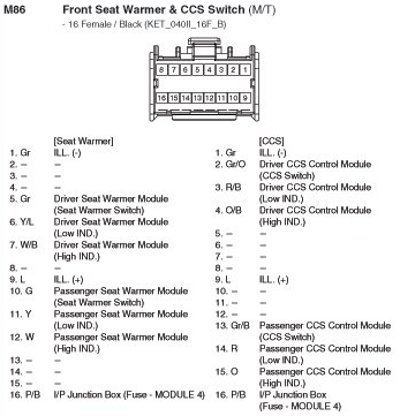

M86 Front Seat Warmer & CCS Switch (M/T):
