Power Circuit Inspection

Open or Short Check
1. IG "ON".
2. Measure voltage between motor power terminal of the AHB harness connector and chassis ground.
  Specification: Approx. B+

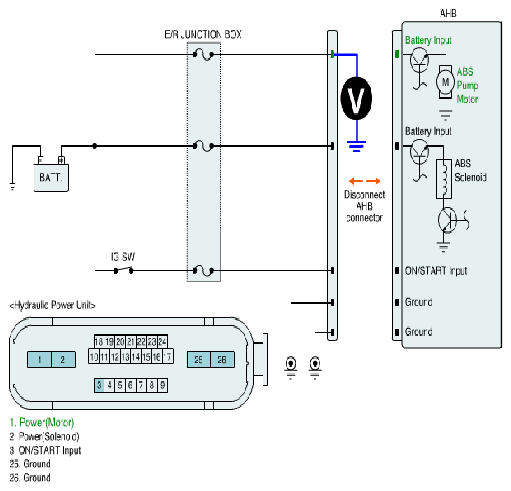

  Fig 1: Measuring Voltage Between Motor Power Terminal Of AHB Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the measured value within specifications?
  YES
  - Go to "GROUND CIRCUIT INSPECTION " procedure.
  NO
  - Check for open or blown fuse referring to "CIRCUIT DIAGRAM ".
  - Repair open or short in power circuit between battery and AHB harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
