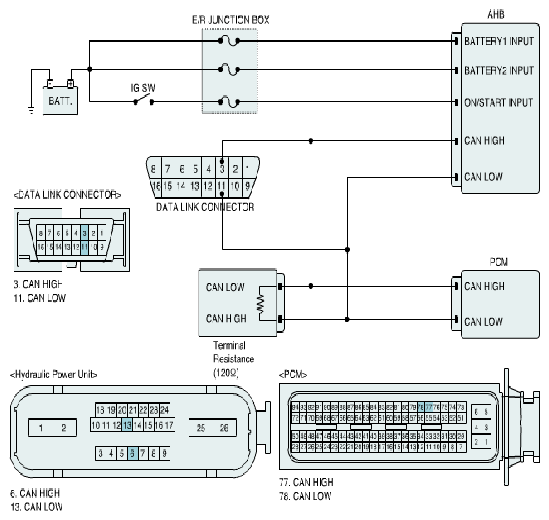

Home >> Kia >> 2012 >> Optima Hybrid >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Active Hydraulic Booster (AHB) System Diagnosis - HEV >> DTC C1616: CAN Bus Off >> General Information >> Diagnostic Circuit Diagram
