Power Circuit Inspection

Open or Short Check
1. IG "ON".
2. Measure voltage between power terminal of the Brake Pedal Travel sensor harness connector and chassis ground.
  Specification: Approx. 5V

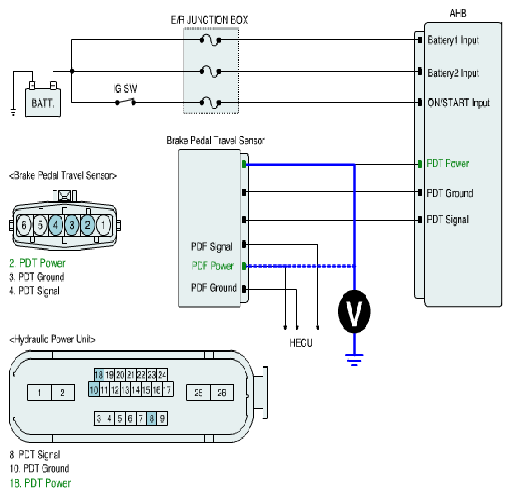

  Fig 1: Measuring Voltage Between Power Terminal Of Brake Pedal Travel Sensor Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
3. Is the measured value within specifications?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Repair open or short in power circuit between the Brake Pedal Travel sensor harness connector and HECU, AHB harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR "
