Ground Circuit Inspection

Open or Short Check
1. IG "OFF".
2. Disconnect the Brake Pedal Travel sensor, AHB connectors.
3. Measure resistance between PDF ground terminal of the Brake Pedal Travel sensor harness connector and chassis ground.
  Specification: Approx. below 1Ω

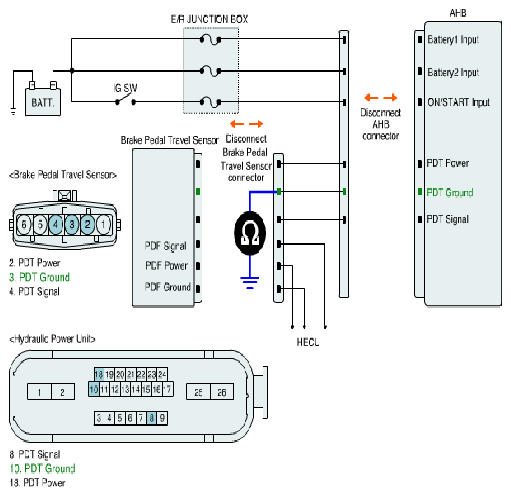

  Fig 1: Measuring Resistance Between PDF Ground Terminal Of Brake Pedal Travel Sensor Harness Connector And Chassis Ground (Open Or Short Check)
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is the measured value within specifications?
  YES
  - Go to "SIGNAL CIRCUIT INSPECTION " procedure.
  NO
  - Repair open or short in ground circuit between the Brake Pedal Travel sensor harness connector and AHB harness connector and then, go to "VERIFICATION OF VEHICLE REPAIR "
