Repair procedures: Removal

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Remove the air duct (B) and air cleaner assembly (A).

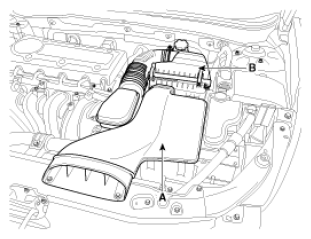

   Fig 1: Identifying Air Duct And Air Cleaner Assembly

   Courtesy of KIA MOTORS AMERICA, INC.
3. Disconnect a connector (B) and loosen the wiring harness mounting nuts. Then pivot the wiring harness (A) side out of the way.

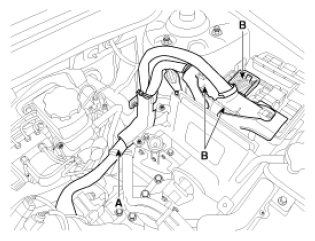

   Fig 2: Identifying Connector And Wiring Harness

   Courtesy of KIA MOTORS AMERICA, INC.
4. Remove the brake actuation unit.

   (Refer to BRAKE ACTUATION UNIT )

5. Remove the hydraulic booster reservoir hose(A).

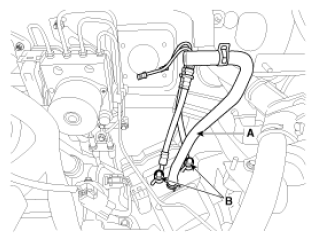

   Fig 3: Identifying Hydraulic Booster Reservoir Hose And Bolt

   Courtesy of KIA MOTORS AMERICA, INC.
6. Disconnect the brake tube from the hydraulic power unit by loosening the bolt (B).

   Tightening torque:

   29.4 ~ 34.3 N.m (3.0 ~ 3.5 kgf.m, 21.7 ~ 25.3 lb-ft)

7. Loosen the hydraulic power unit bracket bolts (A), then remove hydraulic power unit and bracket.

Tightening torque:

19.6 ~ 29.4 N.m (2.0 ~ 3.0 kgf.m, 14.5 ~ 21.7 lb-ft)

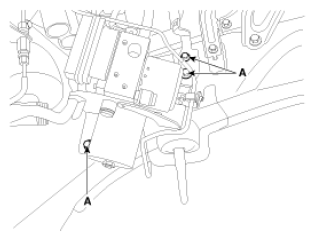

Fig 4: Identifying Hydraulic Power Unit Bracket Bolts

Courtesy of KIA MOTORS AMERICA, INC.
