3. RBCS Function

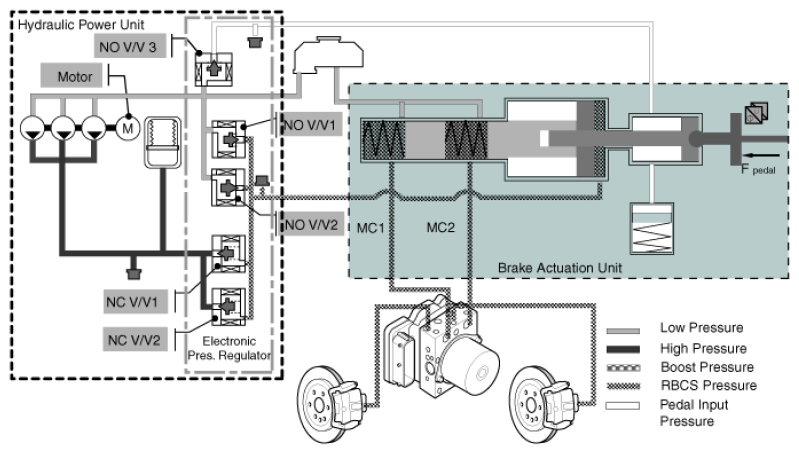

When the regenerative brake cooperation system (RBCS) is engaged, the NO VALVE 1, 2 and NC VALVE 1, 2 control the amperage to reduce or increase the pressure in the boosting chamber that operates regenerative braking.
When the hydraulic braking pressure increases, regenerative braking decreases from the total brake force (driver required brake force). When the hydraulic braking pressure decreases, regenerative braking force increases. As a result, the generated electricity also increases.
| AHB System | NO VALVE 1 | NO VALVE 2 | NO VALVE 3 | NC VALVE 1 | NC VALVE 2 | * Motor |
|---|---|---|---|---|---|---|
| Mode | Amp Control | Amp Control | ON(closed) | Amp Control | Amp Control | ON |
NOTE:
- Motor: when charging Accumulator
