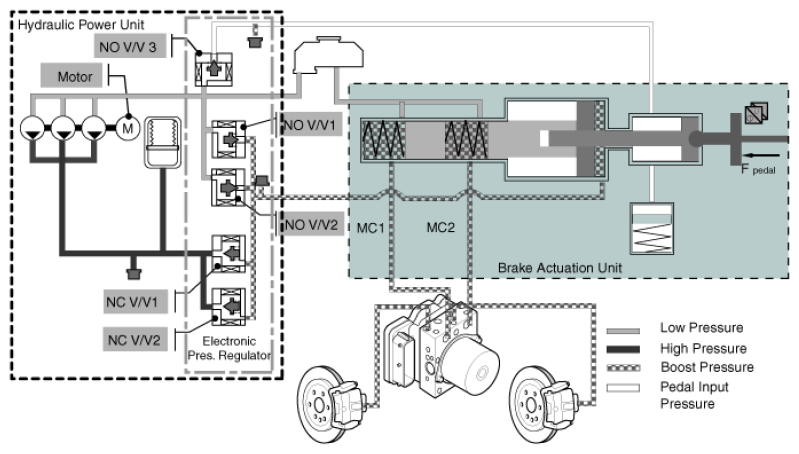

2. Base Brake Function
During normal braking, NO VALVE 1, 2, and 3 are in the ON status and closed. The pump either turns on or off according to the chamber status.
At this point, the NC VALVE 1 and 2 become ON and opened. The pressure generated by the pump is supplied to the boosting chamber and pressure is formed in the cylinder.
| AHB System | NO VALVE 1 | NO VALVE 2 | NO VALVE 3 | NC VALVE 1 | NC VALVE 2 | * Motor |
|---|---|---|---|---|---|---|
| Mode | ON(closed) | ON(closed) | ON(closed) | ON(opened) | ON(opened) | ON/OFF |
NOTE:
- Motor: when charging Accumulator
