Inside Handle Replacement

  1. Remove the front door trim
  2. After loosening the mounting screws, then remove the inside handle (A).

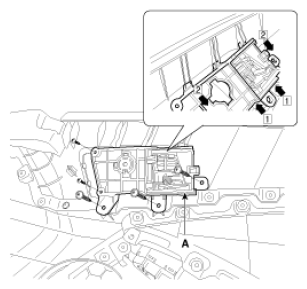

    Fig 1: Locating Inside Handle Mounting Screws
    G08312939Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips.
