Roof Trim Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the following items:
1. Front seat assembly
  (Refer to the "FRONT SEAT ")
2. Rear seat assembly
  (Refer to the "REAR SEAT ")
3. Front pillar trim
  (Refer to the BD group - "INTERIOR TRIM ")
4. Front door scuff trim & Rear door scuff trim
  (Refer to the BD group - "INTERIOR TRIM ")
5. Canter pillar lower trim
  (Refer to the BD group - "INTERIOR TRIM ")
6. Canter pillar upper trim
  (Refer to the BD group - "INTERIOR TRIM ")
7. Rear pillar trim
  (Refer to the BD group - "INTERIOR TRIM ")
8. Package tray trim
  (Refer to the BD group - "INTERIOR TRIM ")
9. Sunvisor
10. Vanity lamp
11. Room lamp
12. Assist handle
13. Overhead console
14. Windshield glass
  (Refer to the BD group - "WINDSHIELD GLASS ")
Remove the ECM mirror cover (A).
Disconnect the ECM mirror connector (B).

Fig 1: Disconnecting ECM Mirror Cover And Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rain sensor cover (A).
Disconnect the rain sensor connector (B).

Fig 2: Identifying Rain Sensor Connector And Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the roof trim main connectors (A).
[Driver's]

Fig 3: Identifying Roof Trim Main Connectors (Driver's)
Courtesy of KIA MOTORS AMERICA, INC.

[Passenger's]

Fig 4: Identifying Roof Trim Main Connectors (Passenger's)
Courtesy of KIA MOTORS AMERICA, INC.

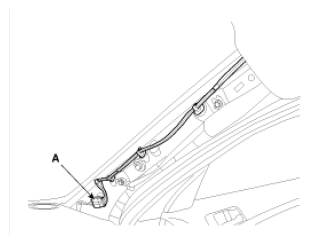

Disconnect the antenna connector (A).

Fig 5: Identifying Antenna Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 6: Identifying Roof Trim Connector
Courtesy of KIA MOTORS AMERICA, INC.

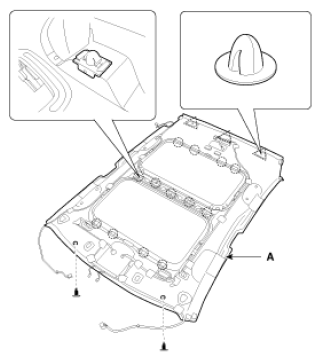

Using a clip remover, detach the roof trim assembly mounting clips.
Pull back the roof trim assembly (A) through the place where the windshield glass was removed.
CAUTION:
- Take care not to damage the roof trim when removing.
Fig 7: Identifying Roof Trim Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
