Package Tray Trim Replacement

CAUTION:

Put on gloves to protect your hands.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly.
(Refer to the "REAR SEAT ")
After loosening the mounting bolt, then remove the rear seat belt lower anchor (A).
[LH, RH]

Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

Fig 1: Identifying Rear Seat Belt Lower Anchor And Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

[Center]

Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.8 ~ 39.8 lb-ft)

Fig 2: Removing Rear Seat Belt Lower Anchor Mounting Bolt Using Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the rear pillar trim (A).

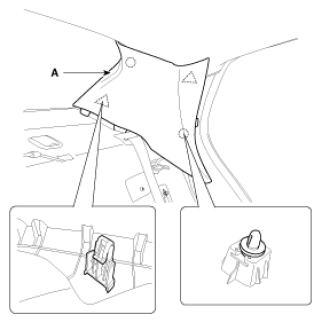

Fig 3: Identifying Rear Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector (A).

Fig 4: Identifying Rear Pillar Trim Connector
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the rear seat belt cover (B).
After loosening the mounting screws, then remove the package tray trim (A).

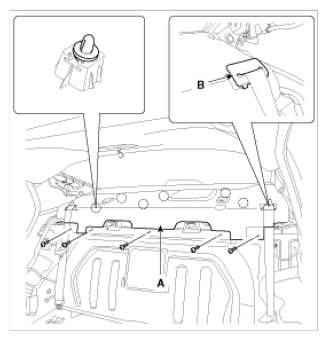

Fig 5: Identifying Rear Seat Belt Cover, Package Tray Trim And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
- Make sure the connector is connected properly.
