Floor Console Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the gear boots (B) and gear knob (A).

Fig 1: Removing Gear Boots And Knob Using Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the floor console upper cover (A).

Fig 2: Removing Floor Console Upper Cover Using Screwdriver
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

Fig 3: Identifying Floor Console Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the console tray mat (A).

Fig 4: Identifying Console Tray Mat
Courtesy of KIA MOTORS AMERICA, INC.
Using a screwdriver or remover, remove the floor console extension cover (A).

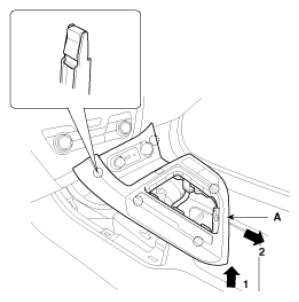

Fig 5: Identifying Floor Console Extension Cover
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws and bolts, then remove the floor console assembly (A).

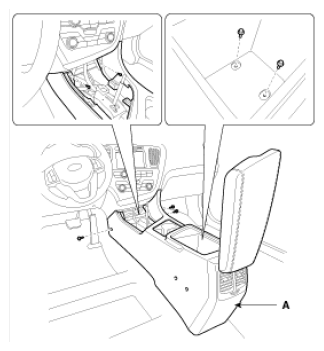

Fig 6: Identifying Floor Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Make sure the connectors are connected in properly.
- Replace any damaged clips.
