Armrest Replacement

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the floor console assembly.
After loosening the mounting screws, then remove the rear console cover (A).

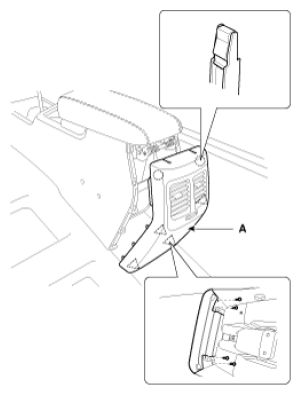

Fig 1: Identifying Rear Console Cover And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the mounting screws, then remove the armrest assembly (A).

Fig 2: Identifying Armrest Assembly And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
