Repair procedures: Inspection

  1. Check the audio remote control switch for resistance between terminals in each switch position.

[Trip + Reset]

Fig 1: Identifying Audio Remote Control Switch Terminals (Trip + Reset)
G08309356Courtesy of KIA MOTORS AMERICA, INC.
Switch Connector terminal Resistance (±5%)
Reset 3 - 5 (LH) 5.54 kΩ
Trip 3 - 5 (LH) 2.54 kΩ

[Trip + Mute + Reset]

Fig 2: Identifying Audio Remote Control Switch Terminals (Trip + Mute + Reset)
G08309357Courtesy of KIA MOTORS AMERICA, INC.
Switch Connector terminal Resistance (±5%)
Mute 3-4 0 Ω
Trip (General option) 2-5 2.55 kΩ
Reset (General option) 2-5 5.55 kΩ
Trip (Cruise option) 2-5 1.1 kΩ
Reset (Cruise option) 2-5 4.1 kΩ

[Trip + ECO + Reset]

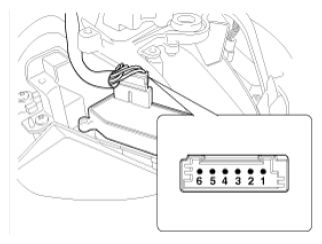

Fig 3: Identifying Audio Remote Control Switch Terminals (Trip + ECO + Reset)
G08309358Courtesy of KIA MOTORS AMERICA, INC.
Switch Connector terminal Resistance (±5%)
ECO 3-5 0 Ω
Trip (General option) 2-5 2.55 kΩ
Reset (General option) 2-5 5.55 kΩ
Trip (Cruise option) 2-5 1.1 kΩ
Reset (Cruise option) 2-5 4.1 kΩ
