Circuit Diagram
Circuit Diagram

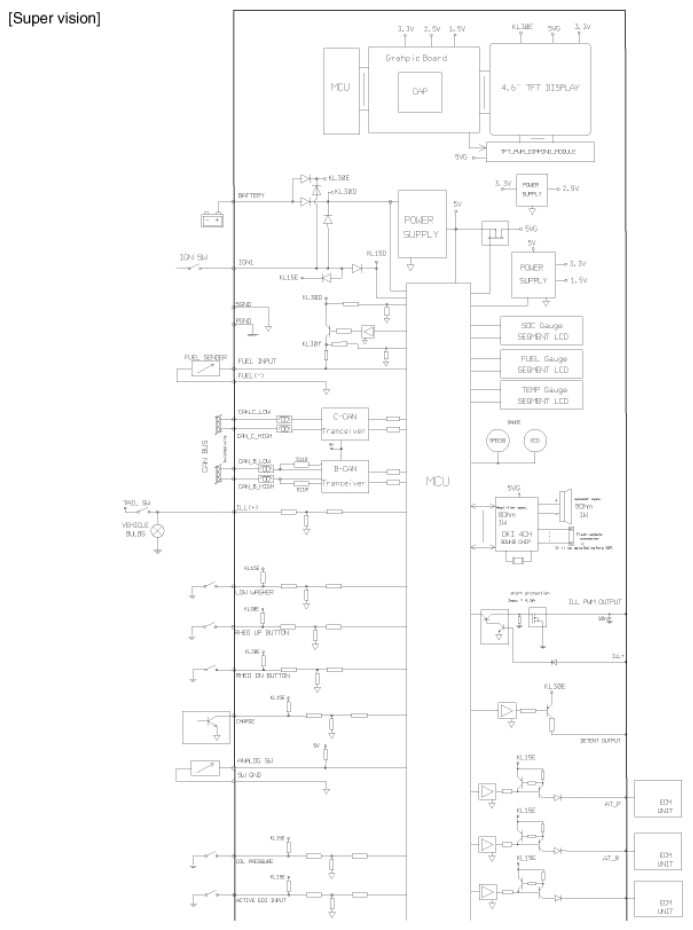

Fig 1: Cluster Network Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

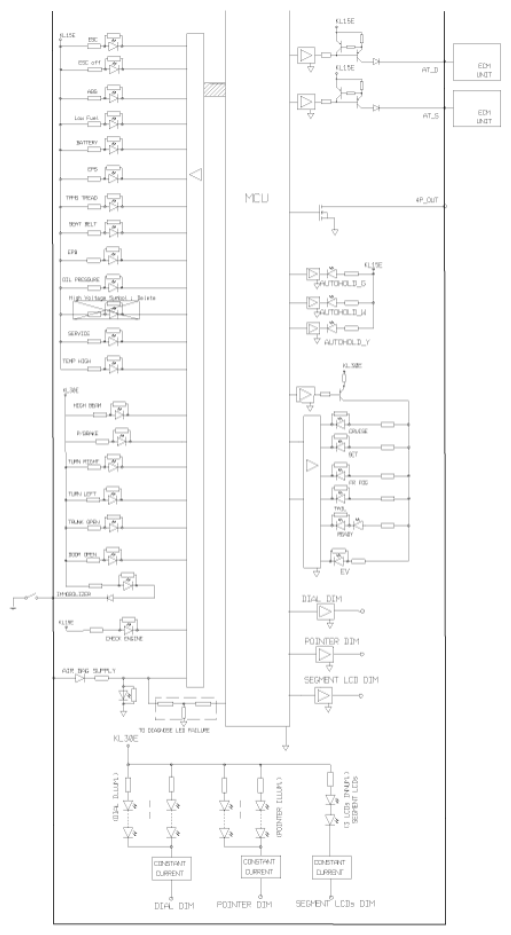

Fig 2: Cluster Network Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
