Components and Components Location: Components

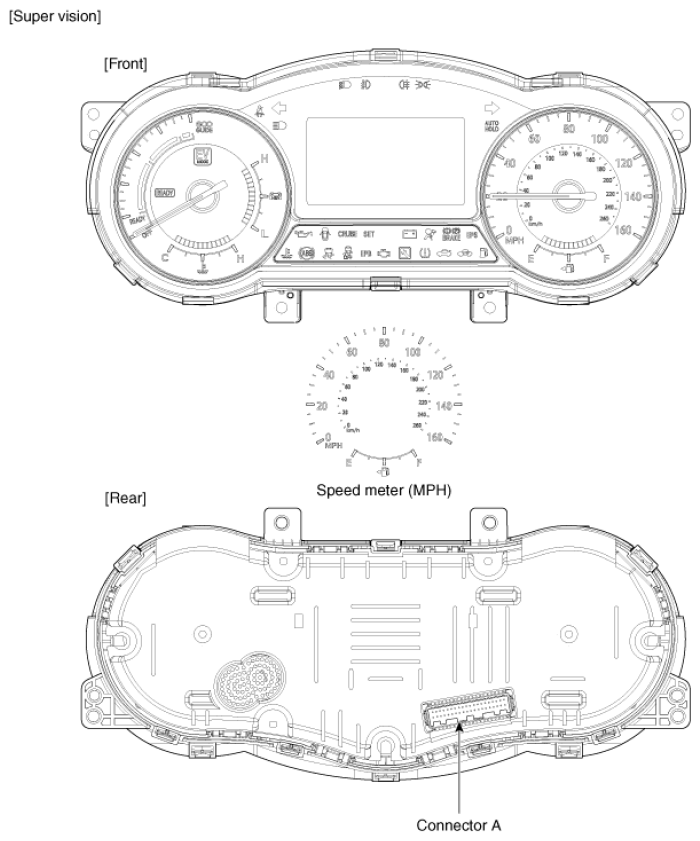

Fig 1: Identifying Instrument Cluster Components Location
G08309331Courtesy of KIA MOTORS AMERICA, INC.

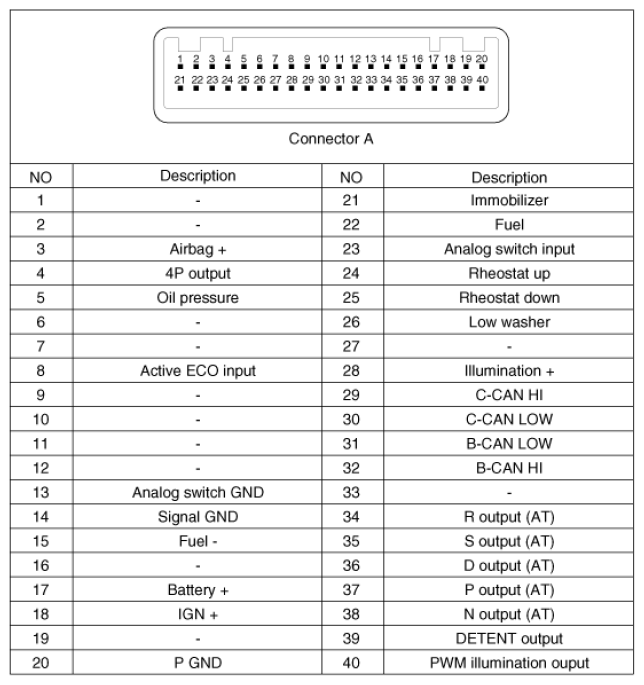

Fig 2: Instrument Cluster Connector Terminals Description Chart
G08309332Courtesy of KIA MOTORS AMERICA, INC.
