Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram

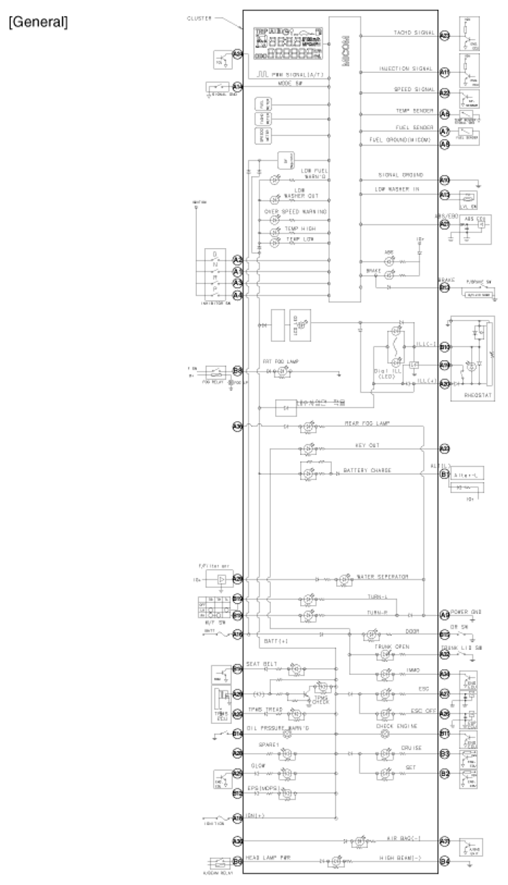

Fig 1: Instrument Cluster Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

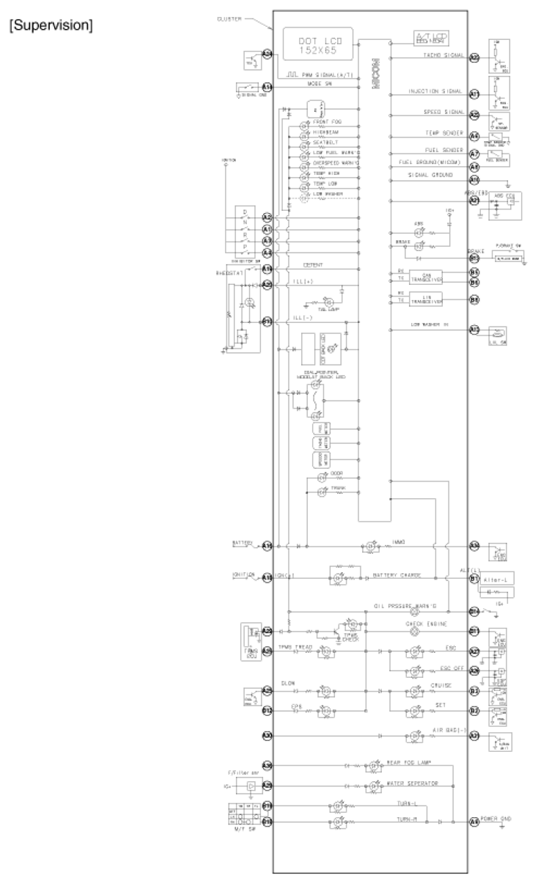

Fig 2: Instrument Cluster Circuit Diagram (Supervision)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
