Component and Components Location: Components

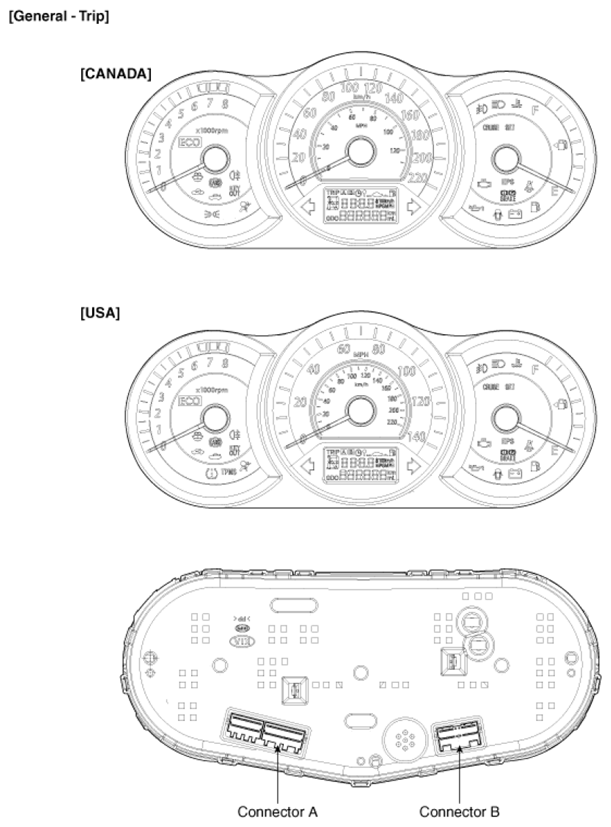

Fig 1: Instrument Cluster (General - Trip)

Courtesy of KIA MOTORS AMERICA, INC.

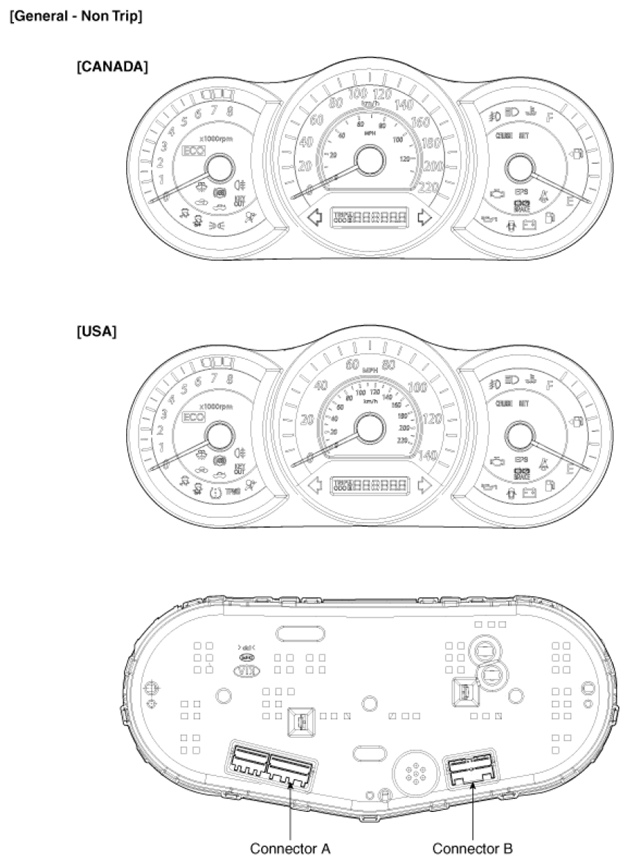

Fig 2: Instrument Cluster (General - Non Trip)

Courtesy of KIA MOTORS AMERICA, INC.

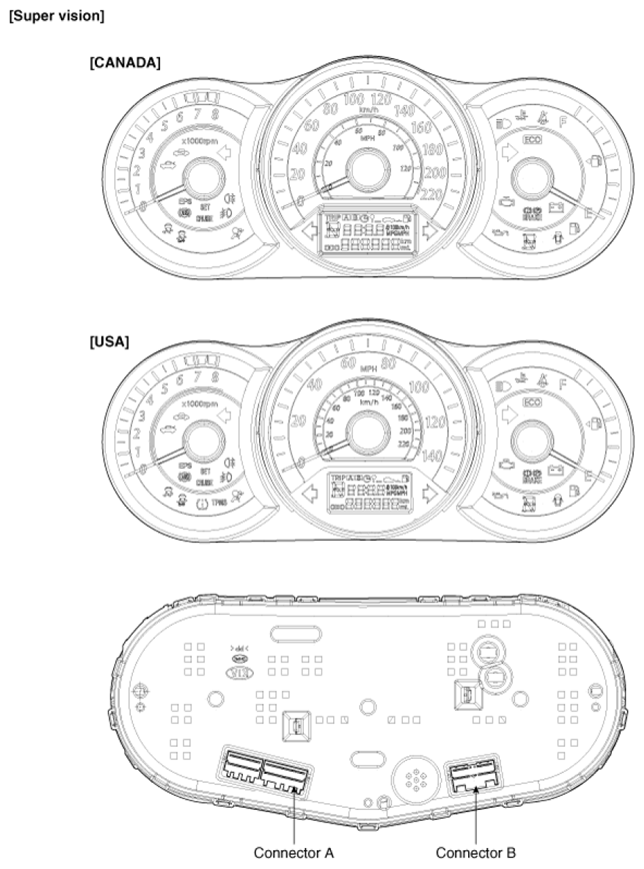

Fig 3: Instrument Cluster (Super Vision)

Courtesy of KIA MOTORS AMERICA, INC.

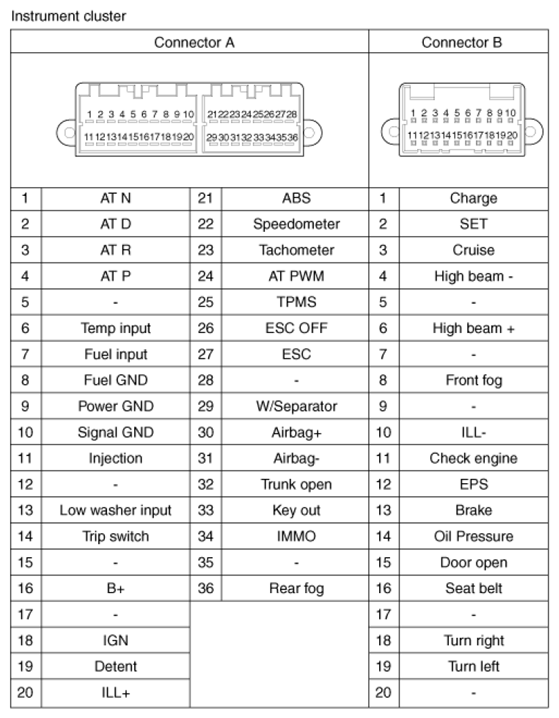

Fig 4: Instrument Cluster Connector Terminal Identification 2012

Courtesy of KIA MOTORS AMERICA, INC.

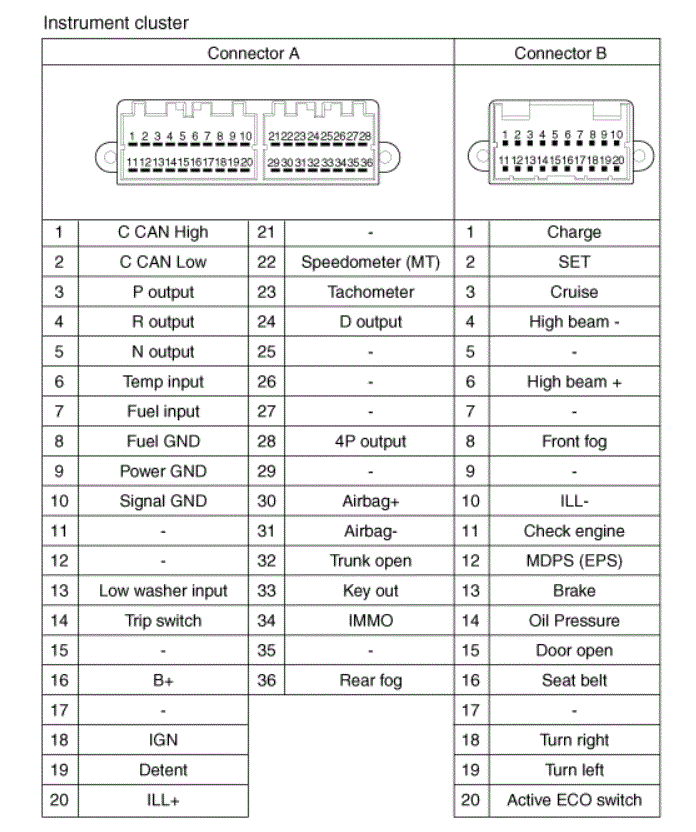

Fig 5: Instrument Cluster Connector Terminal Identification 2013

Courtesy of KIA MOTORS AMERICA, INC.
