Sunroof / Moonroof Switch: Testing and Inspection

Inspection

1. Disconnect the negative (-) battery terminal.

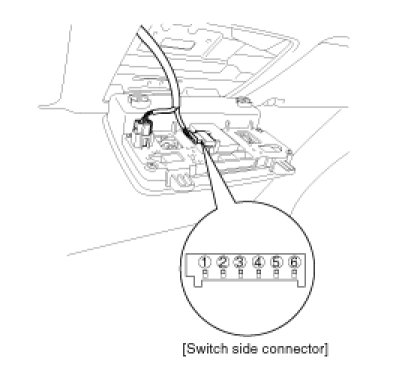

2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead console. Disconnect the switch connector and then remove the overhead console lamp(A).

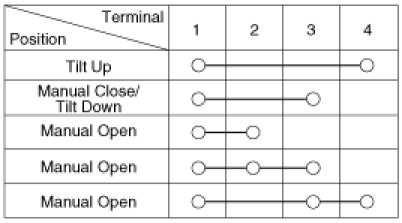

3. Check for continuity between the terminals. If the continuity is not as specified, replace the sunroof switch.
