Diagram Set SD928 (Tail, Parking License Lamps)
Diagram Set SD928 (Tail, Parking License Lamps)

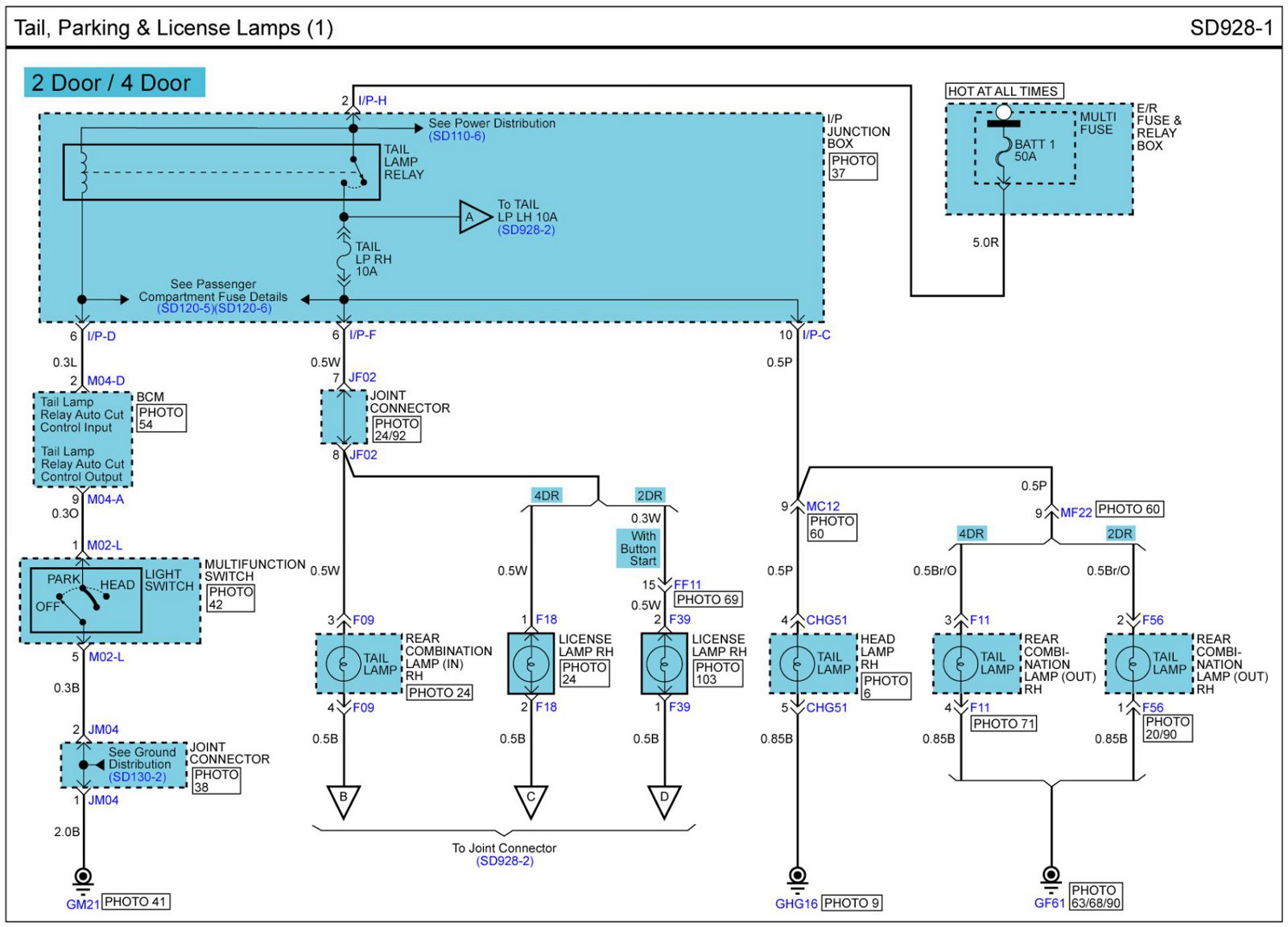

SD928-1 Tail, Parking & License Lamps (1):

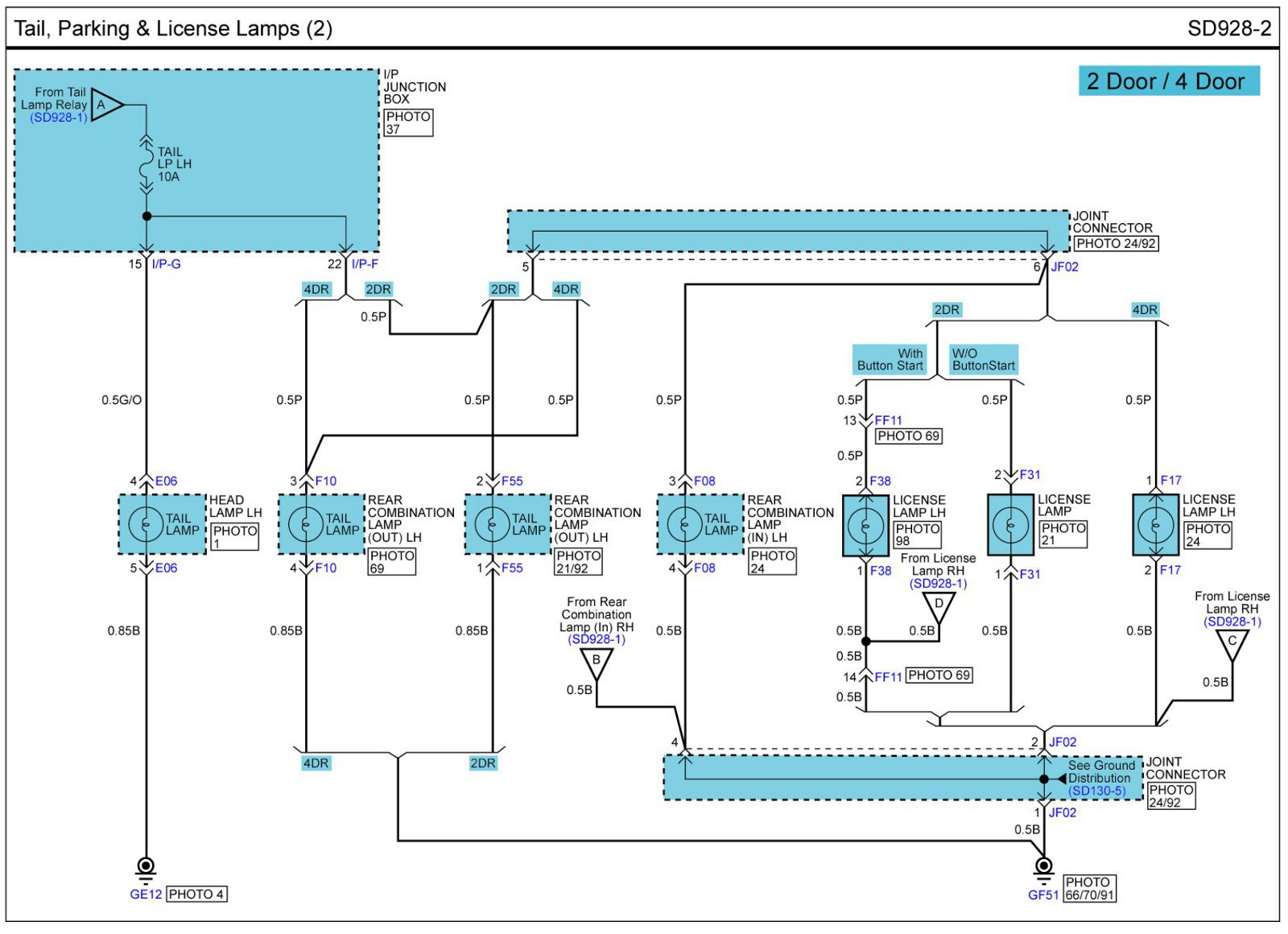

SD928-2 Tail, Parking & License Lamps (2):

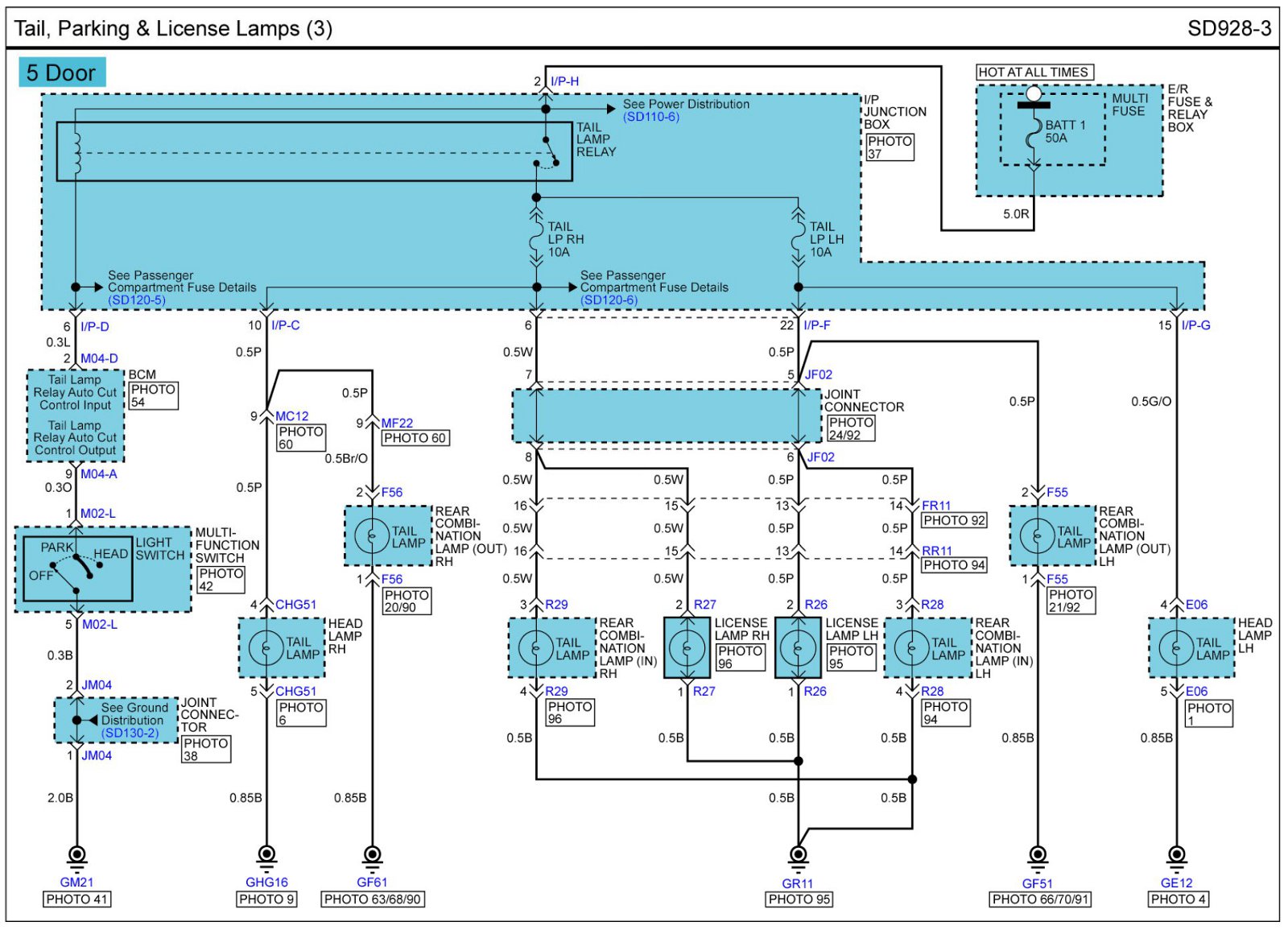

SD928-3 Tail, Parking & License Lamps (3):
