Diagram Set SD940 (Indicators & Gauges)
Diagram Set SD940 (Indicators & Gauges)

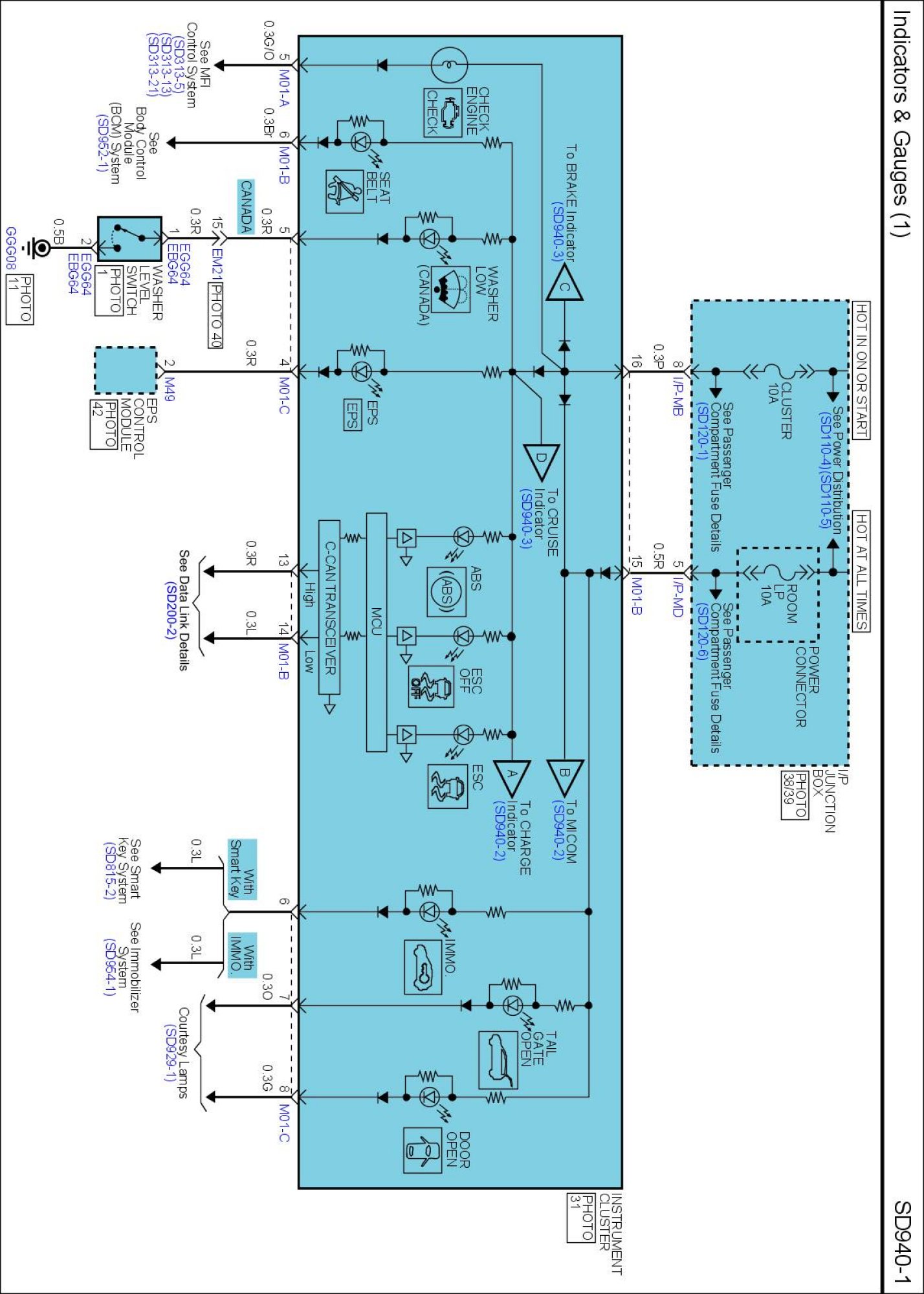

SD940-1 Indicators & Gauges (1):

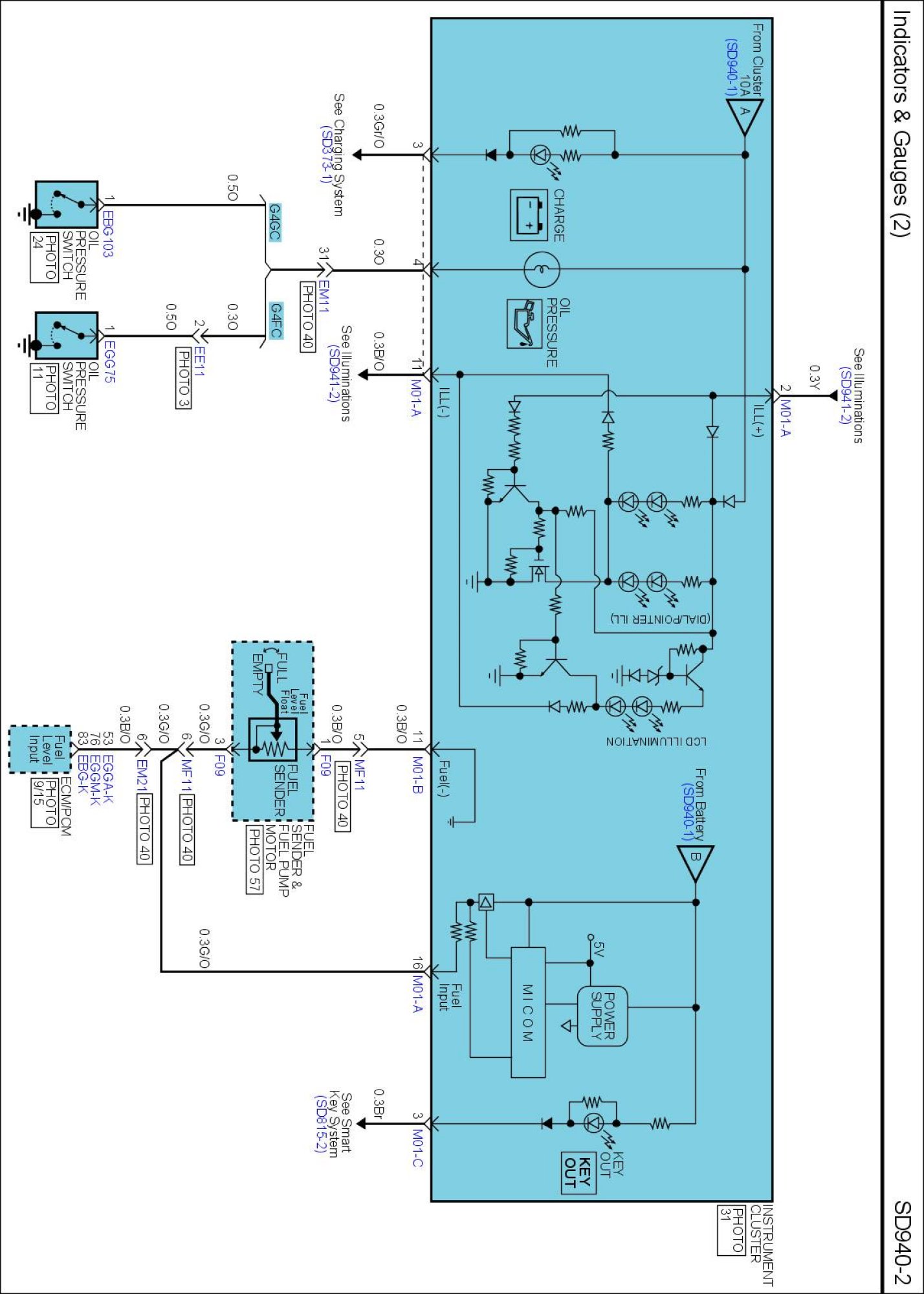

SD940-2 Indicators & Gauges (2):

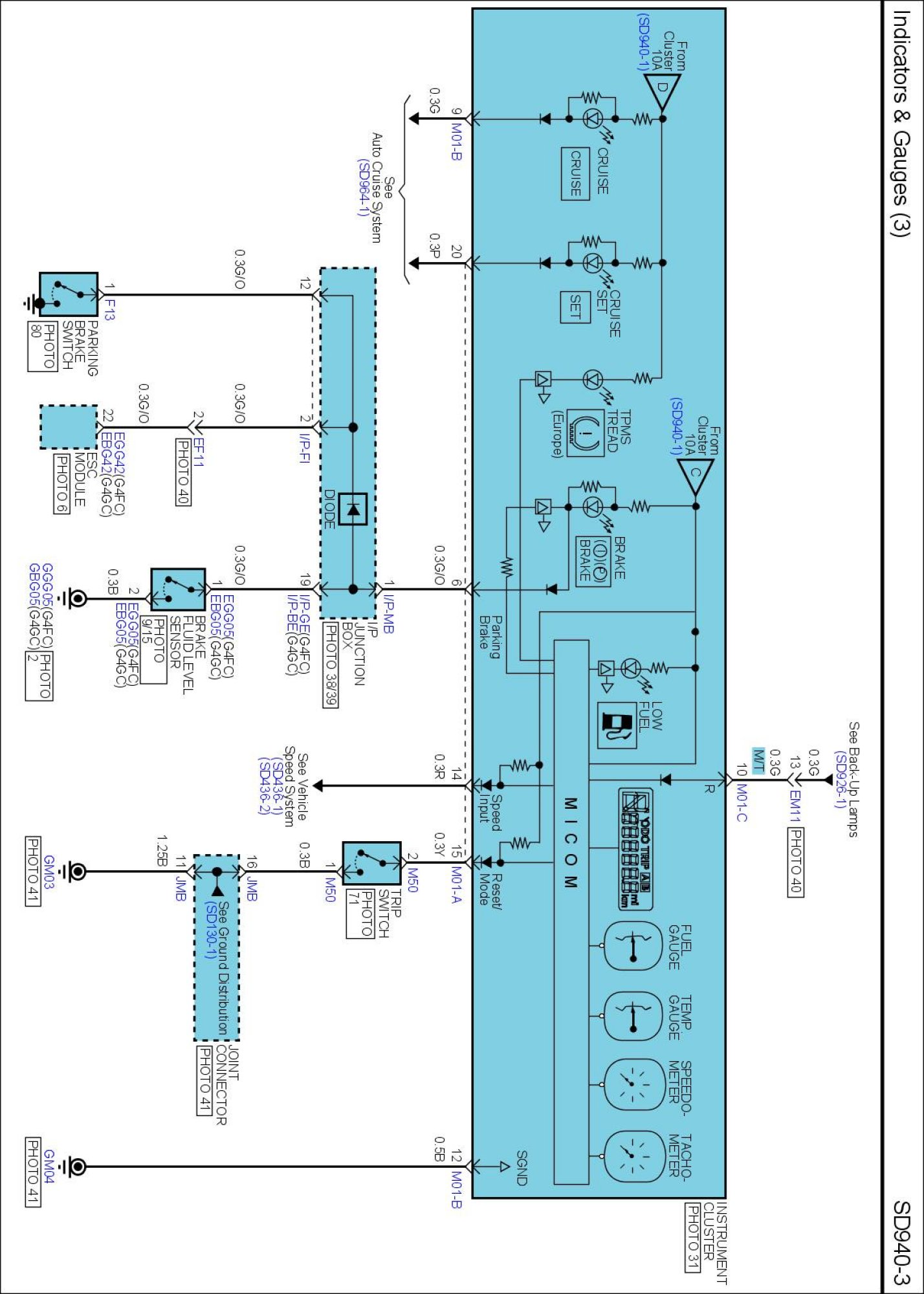

SD940-3 Indicators & Gauges (3):

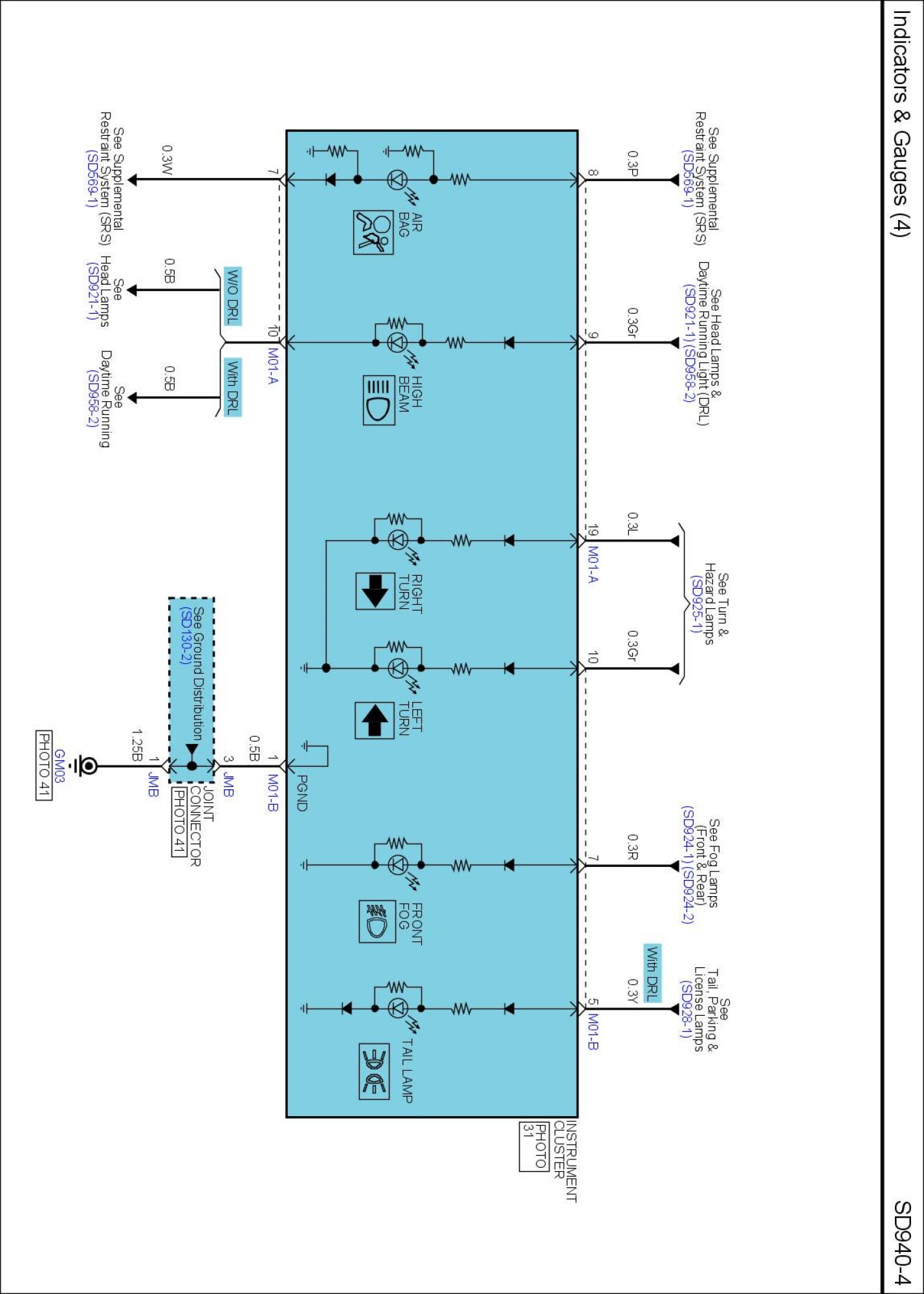

SD940-4 Indicators & Gauges (4):
