Diagram Set SD929 (Courtesy, Mood & Tail Gate Lamps)
Diagram Set SD929 (Courtesy, Mood & Tail Gate Lamps)
SD929-1 Courtesy, Mood & Tail Gate Lamps (1):

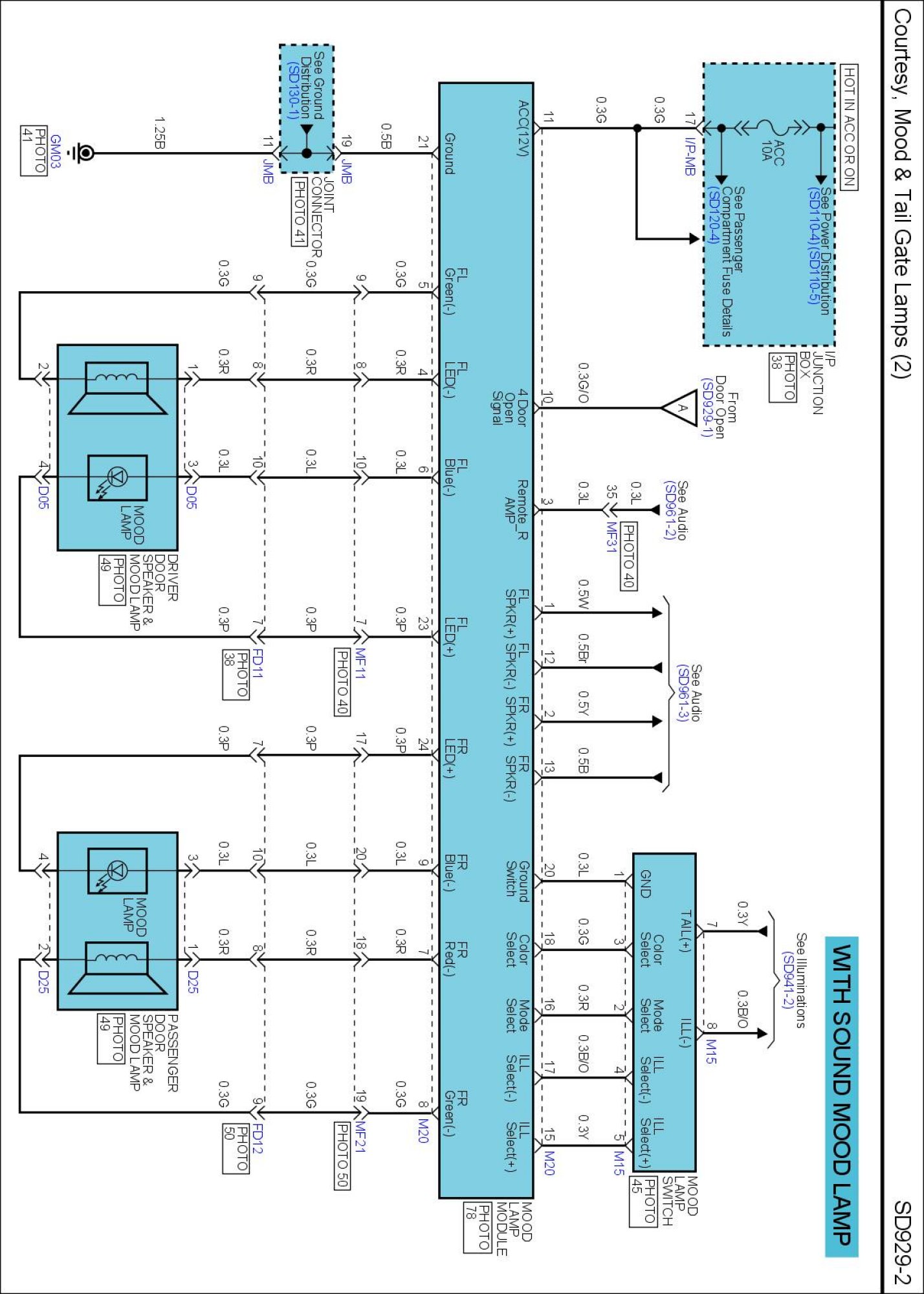

SD929-2 Courtesy, Mood & Tail Gate Lamps (2):
