Luggage Side Trim Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat.
  2. Remove the rear seat belt lower anchor.
  3. After loosening the mounting screws, remove the luggage side trim.
  4. Installation is the reverse of removal.

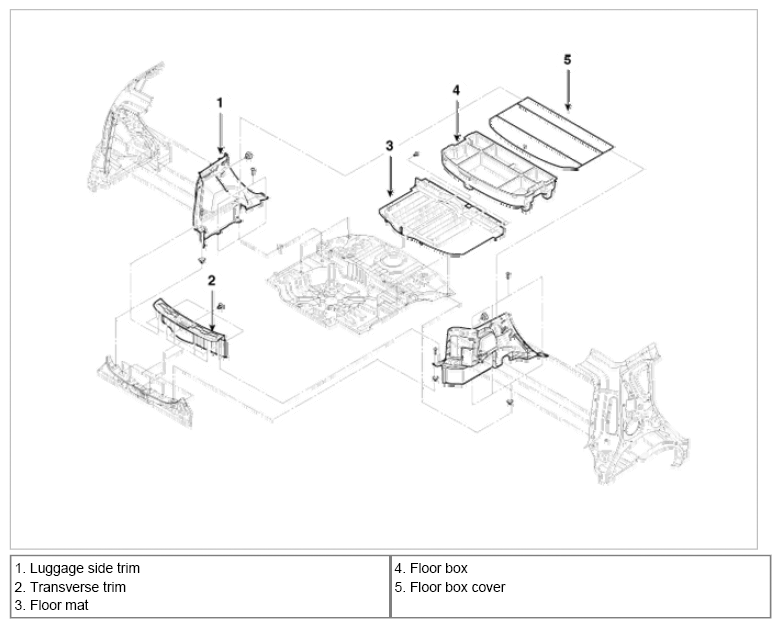

    Fig 1: Identifying Luggage Side Trim Components
    G06525197Courtesy of KIA MOTORS AMERICA, INC.
