Kia
>>
2011
>>
Sorento Base, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Indicators And Gauges
>>
Instrument Cluster
>>
Schematic Diagram
>>
Circuit Diagram
Circuit Diagram

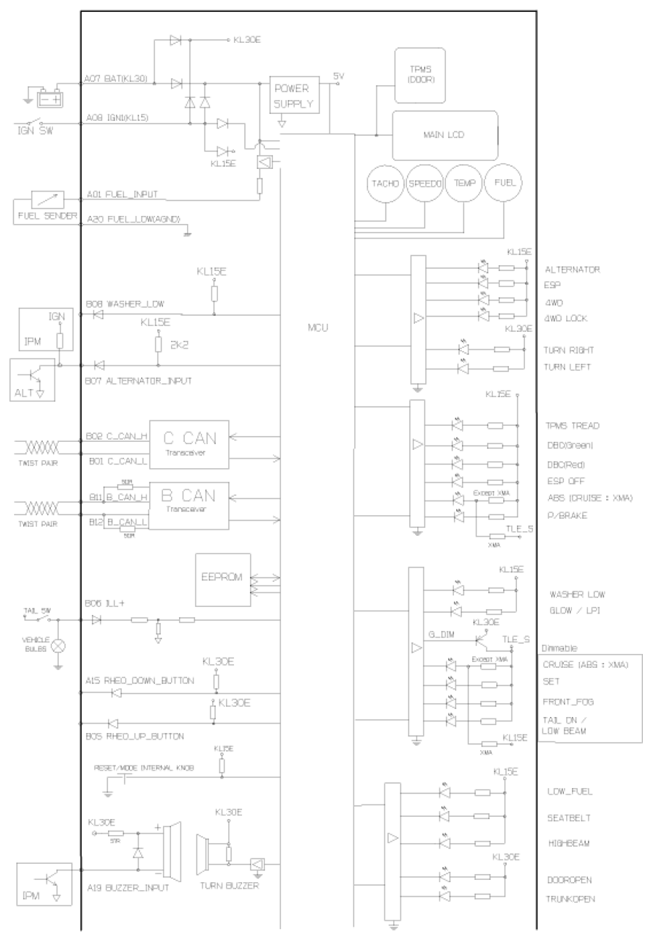

Fig 1: Instrument Cluster Circuit Diagram (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

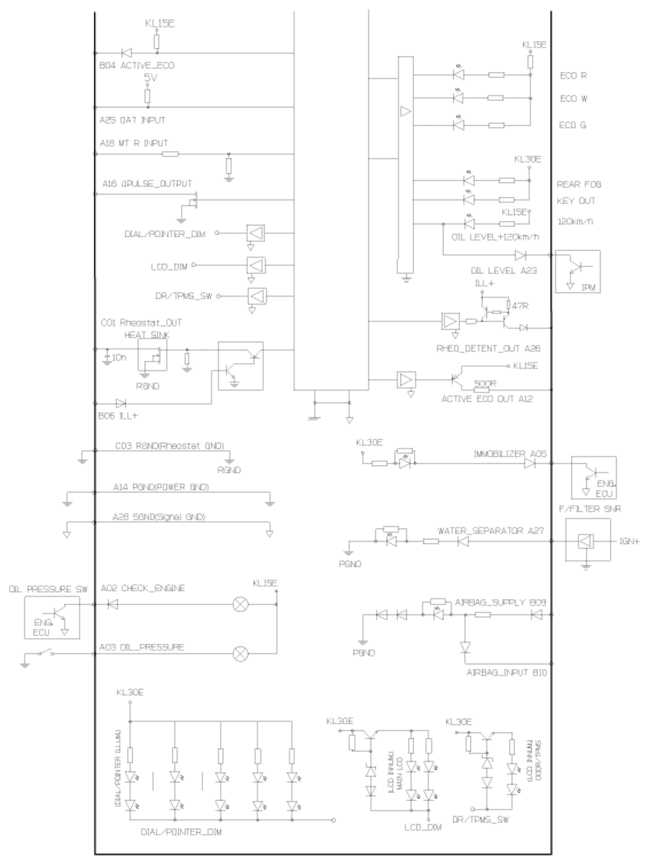

Fig 2: Instrument Cluster Circuit Diagram (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
