Components and Components Location: Components

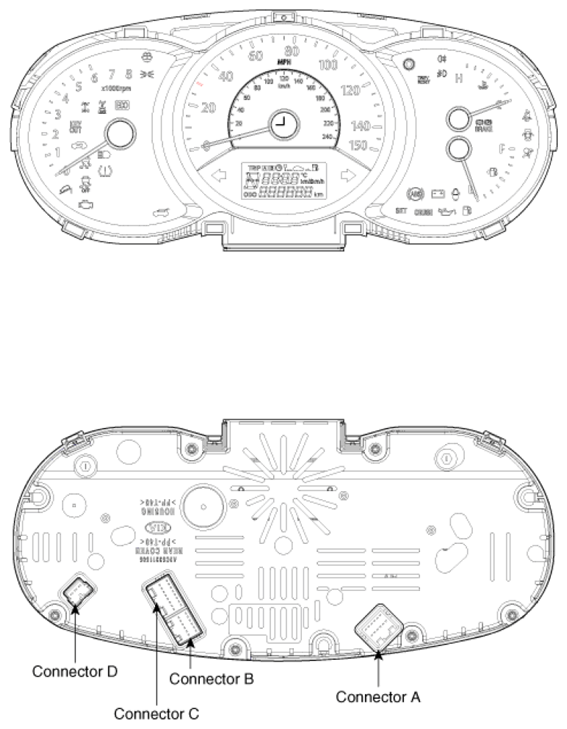

Fig 1: Identifying Instrument Cluster Connectors
G07420115Courtesy of KIA MOTORS AMERICA, INC.

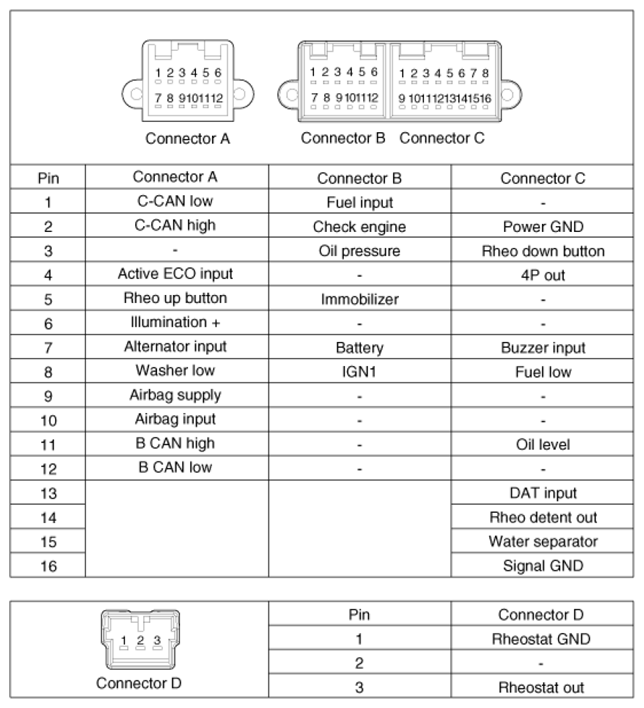

Fig 2: Identifying Instrument Cluster Connector Terminals
G07420116Courtesy of KIA MOTORS AMERICA, INC.
