Rear Pillar Trim Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the luggage trim.
Remove the tailgate lift (A).
Remove the rear pillar upper trim (B).

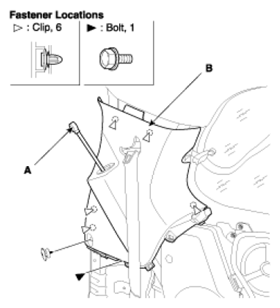

Fig 1: Tailgate Lift & Rear Pillar Upper Trim
Courtesy of KIA MOTORS AMERICA, INC.

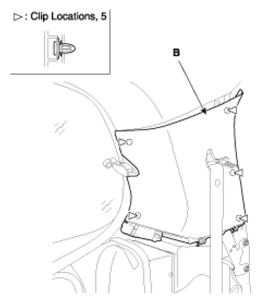

Fig 2: Rear Pillar Upper Trim
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
