Front Pillar Trim

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the front pillar trim (A).

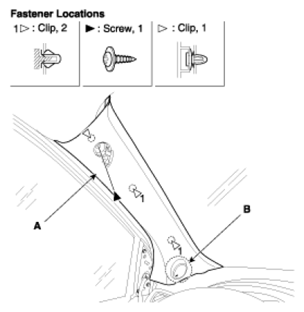

Fig 1: Front Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
