Cowl Side Trim Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front door scuff trim.
  2. Remove the cowl side trim (A).

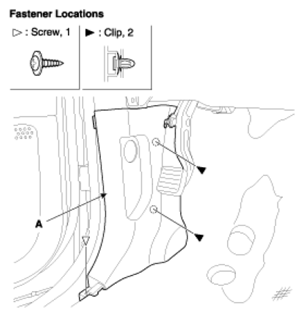

    Fig 1: Cowl Side Trim
    G07396028Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.
