Center Upper Pillar Trim Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
Take care not to bend or scratch the trim and panels.

Remove the center lower pillar trim.
Remove the center upper pillar trim (A).

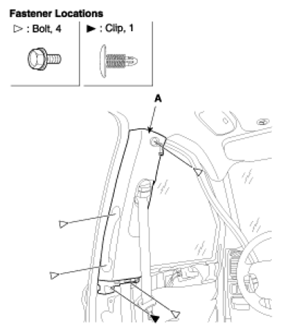

Fig 1: Center Upper Pillar Trim
Courtesy of KIA MOTORS AMERICA, INC.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
