C Pillar Trim Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the luggage trim.
  2. Remove the C pillar trim (A).

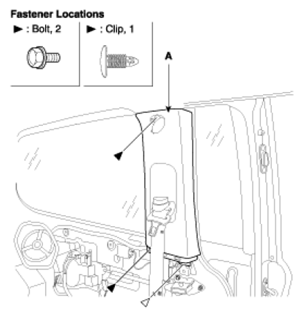

    Fig 1: C Pillar Trim
    G07396033Courtesy of KIA MOTORS AMERICA, INC.
