Glove Box Replacement

  1. Disconnect the damper (B) from the glove box (A).

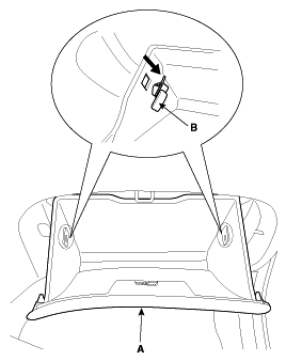

    Fig 1: Identifying Damper And Glove Box
    G06829486Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the glove box (A).
  3. Installation is the reverse of removal.
