Cowl Cross Bar Assemble Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the crash pad.
  2. Disconnect the connectors, after loosening the mounting bolts and nuts remove the cowl crossbar (A).
  3. Installation is the reverse of removal.

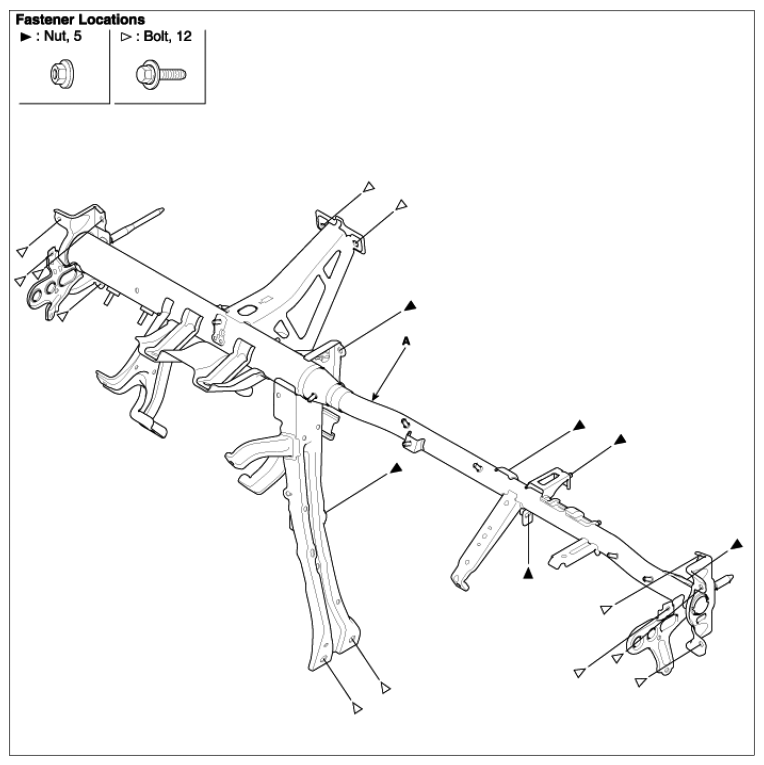

    Fig 1: Identifying Cowl Crossbar With Mounting Bolts And Nuts
    G06829492Courtesy of KIA MOTORS AMERICA, INC.
