Cluster Facia Panel Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Tilt the steering column down.
  2. Disconnect the trip sensor connector (A) then remove the cluster facia panel (B).

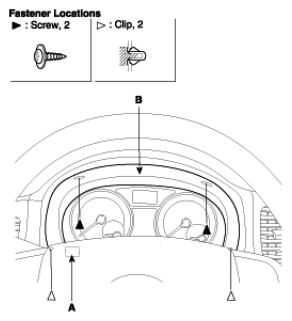

    Fig 1: Identifying Trip Sensor Connector And Cluster Facia Panel With Screws And Clips
    G06829475Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
