Center Facia Panel Replacement

  1. After disconnecting the connector (A), remove the center facia panel (B).
    NOTE:
    • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
    • Put on gloves to protect your hands.

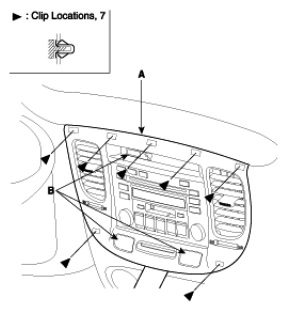

    Fig 1: Identifying Center Facia Panel And Connector With Clips
    G06829476Courtesy of KIA MOTORS AMERICA, INC.
  2. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
