Front Wheel Guard And Mud Guard Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  1. Remove the front tire.
  2. After loosening the mounting clips and screws, then remove the front wheel guard (A), mud guard (B).

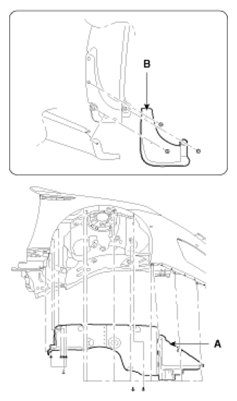

    Fig 1: Front Wheel Guard & Mud Guard
    G07380238Courtesy of KIA MOTORS AMERICA, INC.
  3. Installation is the reverse of removal.
NOTE:
  • Replace any damaged clips.
