Home >> Kia >> 2011 >> Optima L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD889 (Seat Warmer)

Diagram Set SD889 (Seat Warmer)

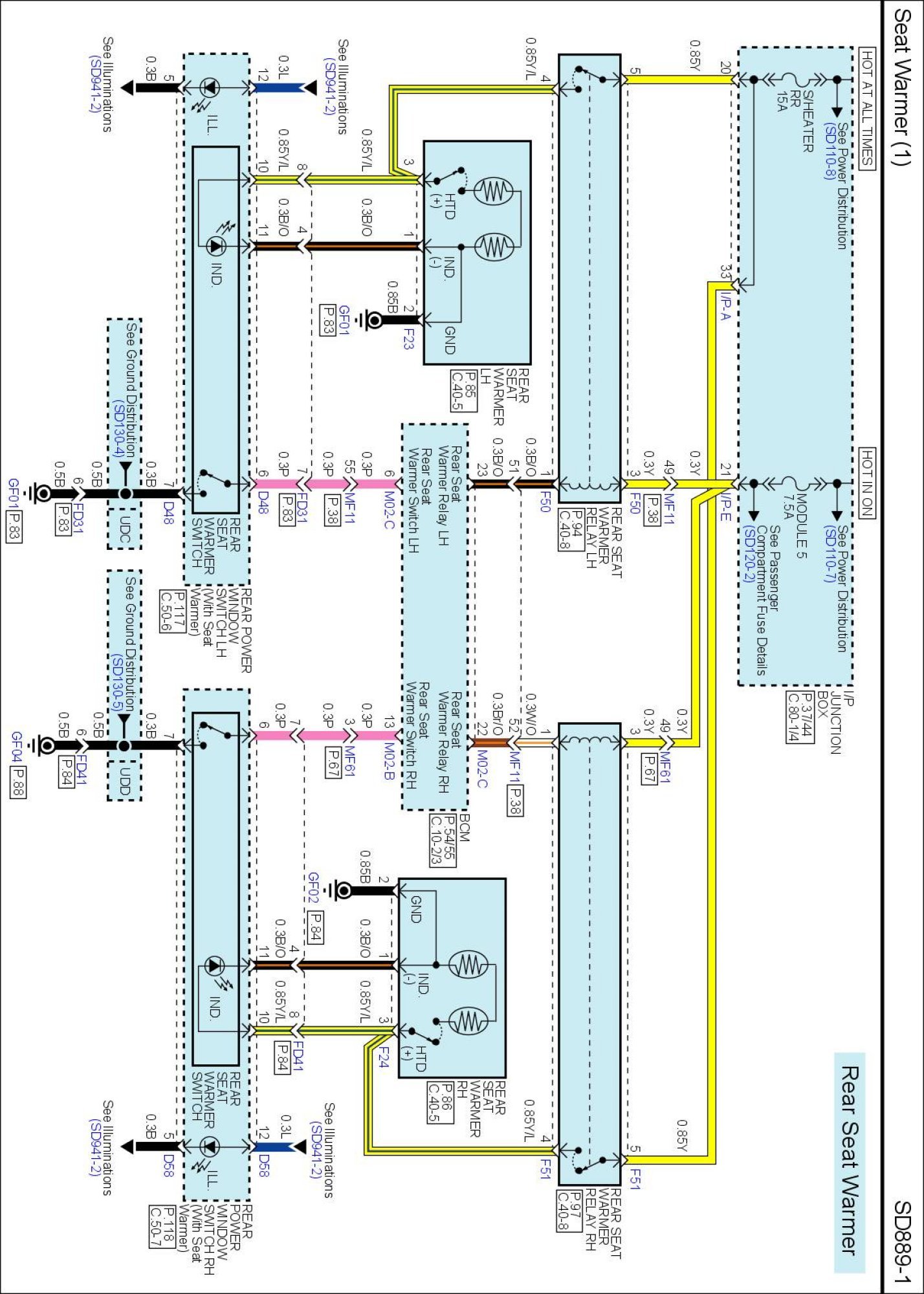

SD889-1 Seat Warmer (1):
